The Gefen DisplayPort EDID Detective (GF-EDD-DP) keeps your workstations and AV systems talking by capturing and storing display EDID information, then maintaining stable communication even when displays are powered off, switched, or routed through complex systems. Fully compliant with DisplayPort 1.4 and HDCP 2.3/2.2/1.x, it maintains reliable communication up to 8K@30Hz and 4K@60Hz with 32.4Gbps bandwidth (HBR3). Supports HDR10, HDR10+, Dolby Vision, and HLG video formats, plus immersive audio including Dolby Atmos and DTS:X. Features five factory-loaded Gefen EDID profiles and three user-programmable memory banks via USB-C for ultimate flexibility. Auxiliary channel re-clocking and active HPD/Link Training eliminate blank screens, mismatched resolutions, and signal loss. Compact metal design (90mm x 72mm x 20mm) ideal for field deployment or rack installations. Write-enable switch protects stored EDIDs from accidental overwriting in critical workflows.
Key Features
8K & 4K Resolution Support:Maintains reliable DisplayPort 1.4 communication up to 8K@30Hz and 4K@60Hz with 32.4Gbps bandwidth (HBR3). Fully compliant with HDCP 2.3/2.2/1.x standards, ensuring reliable interoperability across modern displays and sources.
Advanced EDID Management:Includes five factory-loaded Gefen EDID profiles optimized for common display configurations, plus three user-programmable memory banks. Quickly adapt to unique system setups or troubleshooting scenarios without reprogramming every time you switch displays.
Active Signal Integrity:Auxiliary channel re-clocking and active HPD (Hot Plug Detect)/Link Training maintain proper handshaking even when the display is disconnected, eliminating intermittent signal loss, flicker, or blank screens during system reconfiguration.
Premium Format Preservation:Supports HDR10, HDR10+, Dolby Vision, and HLG video formats while preserving immersive audio including Dolby Atmos® and DTS:X™. Ensures your high-end content maintains full fidelity through complex routing and switching scenarios.
USB-C Programmability:Easy EDID programming, firmware updates, and field service access via USB-C port. The USB-C connection enables flexible EDID management and keeps the unit adaptable to evolving AV systems.
Secure Configuration Protection:Two-position write-enable switch protects stored EDIDs from accidental overwriting during operation. Once configured for critical installations, lock settings to ensure reliable, repeatable performance in critical workflows.

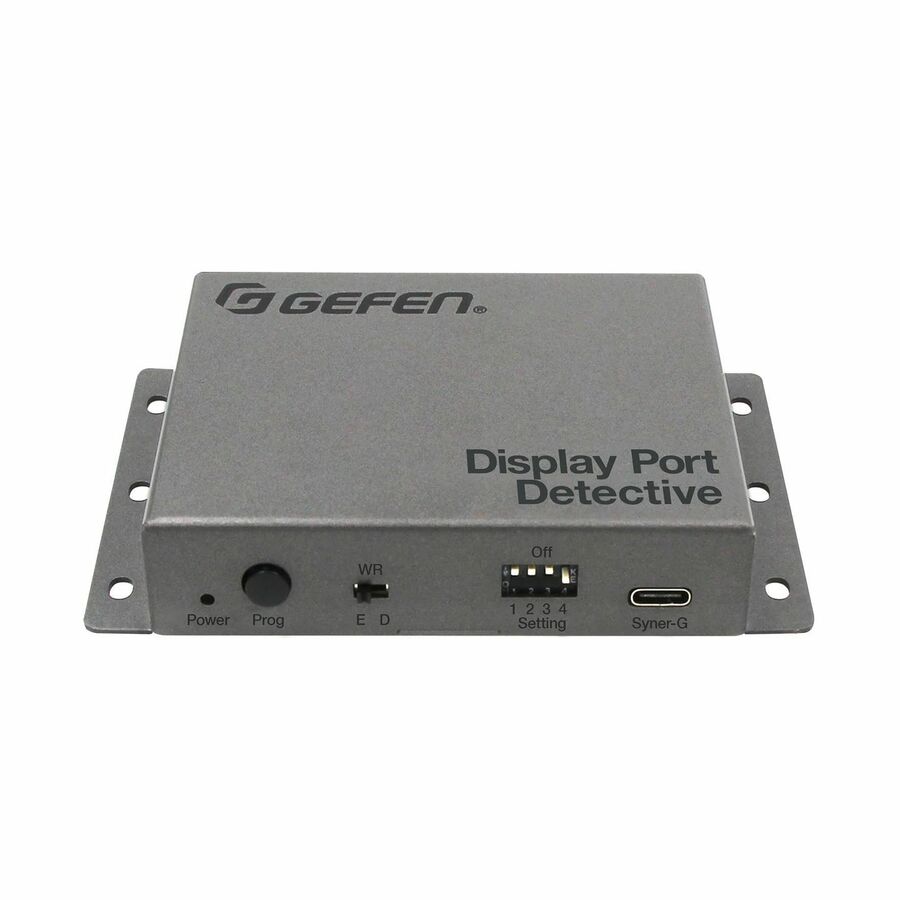

Field-Ready Design:Compact metal enclosure (90mm � 72mm � 20mm) with surface-mount capability fits seamlessly into rack installations or field deployments. Bi-color LED indicators provide instant visual confirmation of power, HPD status, and active EDID bank selection.
How It Works
Setup (Plug-and-Play)
Connect the DisplayPort Detective inline between your source device and display using standard DisplayPort cables. Power via included 5V/1A adapter or USB bus power during programming. The unit automatically captures and stores the connected display's EDID information upon first connection.
- The edid emulator/manager is a great choice for capturing and saving your favorite photos, audio and videos recorded by the capture card
- Converts an analog video signal to digital form
- Plug and Play your edid emulator/manager with the PC and go
- The Surface-mountable form factor allocates you simple and easy installation for your edid emulator/manager
| Brand | |
|---|---|
| Brand | Nice S.p.A. |
| Screen / Display | |
|---|---|
| Maximum Resolution | 7680 x 4320 |
| Screen Mode Supported | 4K |
| Power & Battery | |
|---|---|
| Power Source | DC |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB Type-C |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Functions | Video Capturing |
| Supported Video Modes | 2160p |
| Manufacturer | Nice S.p.A. |
