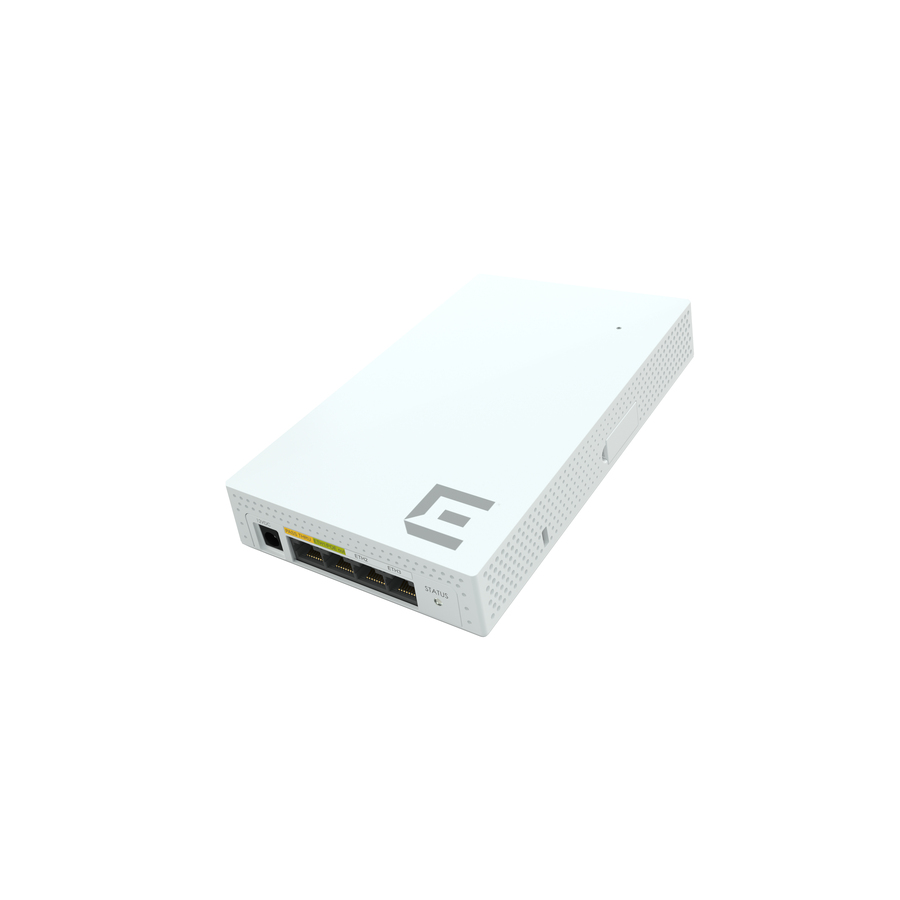

Compact enterprise-class wallplate access point and switch with embedded IoT technology designed for wall or desktop mount. Ideal for use-cases such as hotel rooms, cruise ships, residential halls, or other multi-dwellingunit deployments.
The AP302W delivers high-performance wireless access, with aggregate rates of up to 1.6 Gbps, integrated Bluetooth Low Energy (BLE) and Zigbee for IoT connectivity, and 4 Gigabit Ethernet ports that can power digital phones, IoT sensors, or cameras.
The AP302W provides context-based security and performance optimization especially designed for multi-dwelling environments, through an on-board stateful L2-L7 DPI firewall, advanced and customizable Quality of Service (QoS) for traffic optimization, encrypted client tunneling, and much more.
Multi-Access Modes
Versatile in-room device delivering connectivity across multiple wired and wireless mediums including Wi-Fi, Ethernet, BLE, and Zigbee. Securely connect all of your devices from computers to cameras and games consoles through one convenient access solution.
Advanced Security
This device delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private PreShared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- 1.60 Gbit/s wireless transmission speed provides high and efficient communication with maximum efficiency
- 802.11ax wireless LAN standard lets you connected on the go so your productivity never stops
- Gigabit Ethernet port for ultra-fast wired network speeds
- Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
- Internal antenna form factor for convenient, desired usage and placement with maximum productivity
- Wall Mountable form factor for your usage convenience and better reliance
| Brand | |
|---|---|
| Brand | Extreme Networks |
| Power & Battery | |
|---|---|
| Maximum Operating Power Consumption | 11.60 W |
| Networking & Connectivity | |
|---|---|
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Wireless Transmission Speed | 1.60 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Ports | 4 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Plate |
| Antenna Form Factor | Internal |
| Keyboard/Keypad Weight (Approximate) | 15.20 oz |
| Maximum Height Adjustment (Above) | 6.9" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Manufacturer | Extreme Networks, Inc |
| Brand | Extreme Networks, Inc |
| UPC/GTIN | 644728052899 |
| MPN | AP302W-FCC |
| Unit Count | 1 Units |
