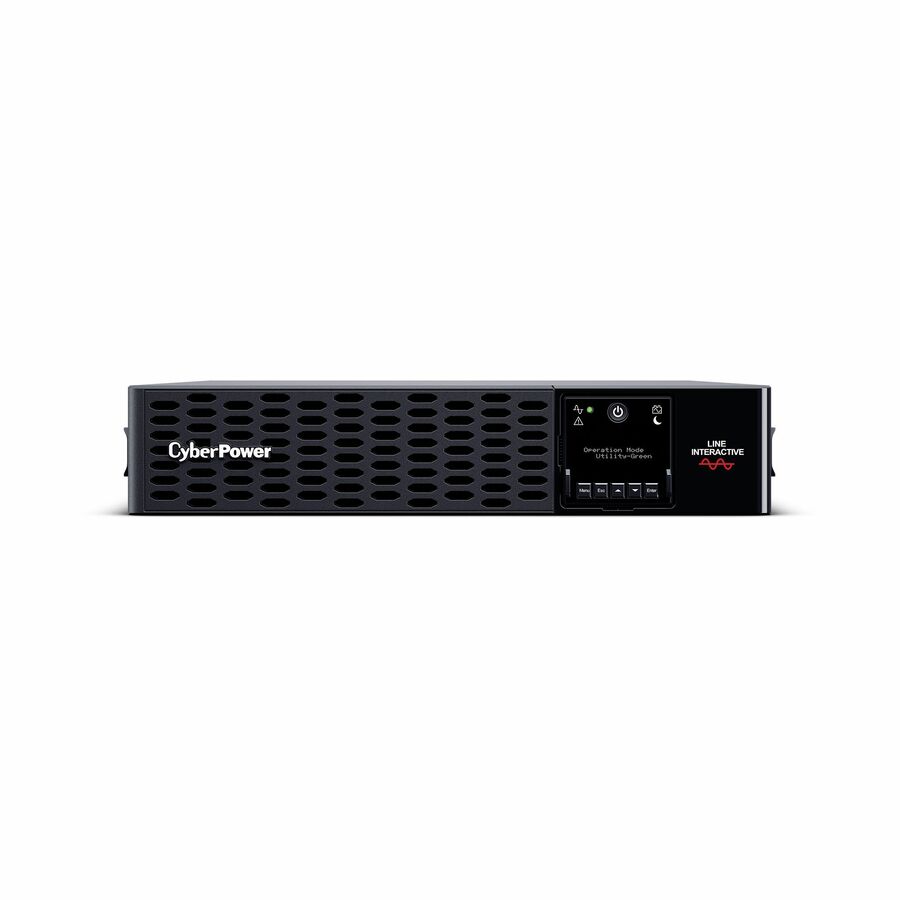

The PR2200RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR2200RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UHVAN.
- Warranty: 3 year
- ENERGY STAR® certified: Yes
- Management software: PowerPanel® Business Edition
- Remote management: Yes, pre-installed RMCARD205
- Communication: USB, Serial, SNMP, Relay, EPO
- Plug type & cord: NEMA L6-20P, 10 ft. cord
- Outlet types: 4 � NEMA 6-20R; 2 x NEMA L6-20R
- Output: 200-240 VAC ± 5%
- Waveform: Sine Wave
- Topology: Line Interactive
- Capacity: 2200 VA / 2200 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 6 |
| Number of Critical Load Outle | 2 |
| Replaceable Battery | Yes |
| Input Frequency | 63 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| EPO Port | Yes |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Type | NEMA L6-20R |
| Plug/Connector Type | NEMA L6-20P |
| Battery Capacity | 6000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 8 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 131 V AC - 302 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Circuit Breaker Current Rating | 20 A |
| Load Capacity (Watt) | 2200 W |
| Load Capacity (VA) | 2200 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 1 |
| Backup/Run Time (Full Load) | 5.30 Minute |
| Backup/Run Time (Half Load) | 15.20 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Product Condition | New |
| Thermal Dissipation | 24.35 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $400000 Lifetime |
