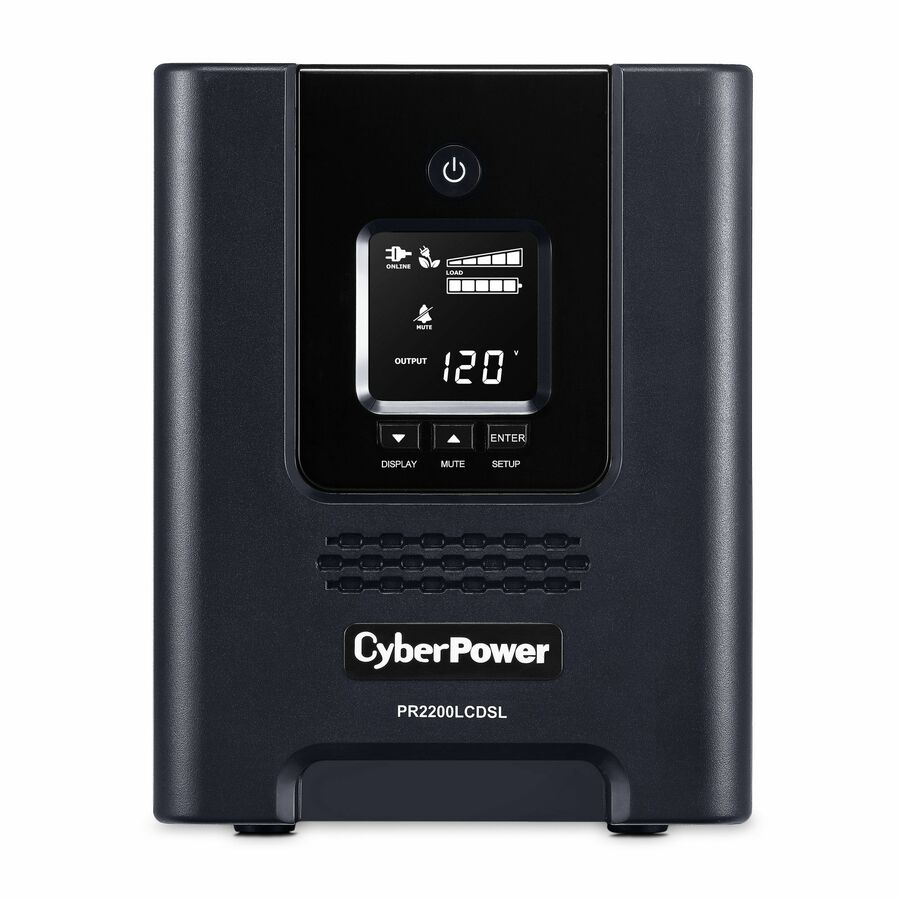

A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR2200LCDSL provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR2200LCDSL uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently The PR2200LCDSL comes with a three-year warranty (including coverage of batteries) and a ,375,000 Connected Equipment Guarantee.
- Warranty: 3 year
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
- Management software: PowerPanel® Business
- Communication: USB, Serial, SNMP, Relay, EPO
- Outlet types: 6 x NEMA 5-20R, 1 x NEMA L5-20R
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-20P (straight), 10 ft.
- Waveform: Sine Wave
- Capacity: 2070 VA / 1980 W
- Topology: Line Interactive
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| EPO Port | Yes |
| Receptacle Detail | 1 x NEMA L5-20R |
| Receptacle Type | NEMA L5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Number of Battery & Surge Outlets | 7 |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 75 V AC - 154 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1980 W |
| Load Capacity (VA) | 2070 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 1 |
| Backup/Run Time (Full Load) | 3.30 Minute |
| Backup/Run Time (Half Load) | 10.20 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1030 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini-tower |
| Maximum Height Adjustment (Above) | 8.7" |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Minimum Operating Humidity (Non-condensing) | 0% - 90% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $375000 Lifetime |
| Brand | CyberPower Systems, Inc |
| UPC/GTIN | 649532610259 |
| MPN | PR2200LCDSL |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
