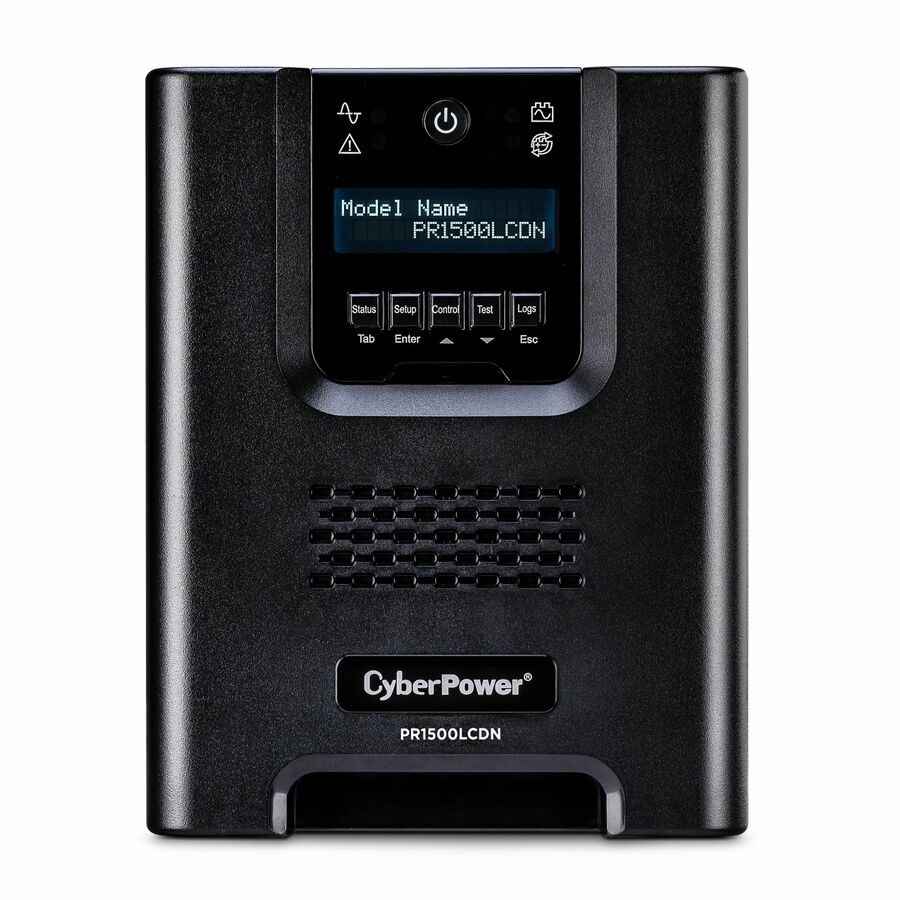

A mini-tower UPS with line interactive topology and a pre-installed SNMP card, the CyberPower Smart App Sinewave PR1500LCDN provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCDN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed. The PR1500LCDN comes with a three-year warranty and a ,375,000 Connected Equipment Guarantee.
- Warranty: 3 year
- Remote management: RMCARD205 included
- Management software: PowerPanel® Business Edition
- Communication: USB, Serial, SNMP, Relay, EPO
- Outlet types: 8 � NEMA 5-15R
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Topology: Line Interactive
- Waveform: Sine Wave
- Capacity: 1500 VA / 1500 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 8 |
| Number of Critical Load Outle | 4 |
| Replaceable Battery | Yes |
| Input Frequency | 60 Hz |
| Overload Protection | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| EPO Port | Yes |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Battery Capacity | 17000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 2 |
| Battery Characteristics | Maintenance-free/Sealed |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 78 V AC - 149 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 1500 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Backup/Run Time (Half Load) | 15.10 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1030 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini-tower |
| General Features | |
|---|---|
| Alarm | Replace Battery |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | Lifetime |
| Miscellaneous | |
|---|---|
| Product Name | PR1500LCDN Smart App Sinewave UPS Systems |
