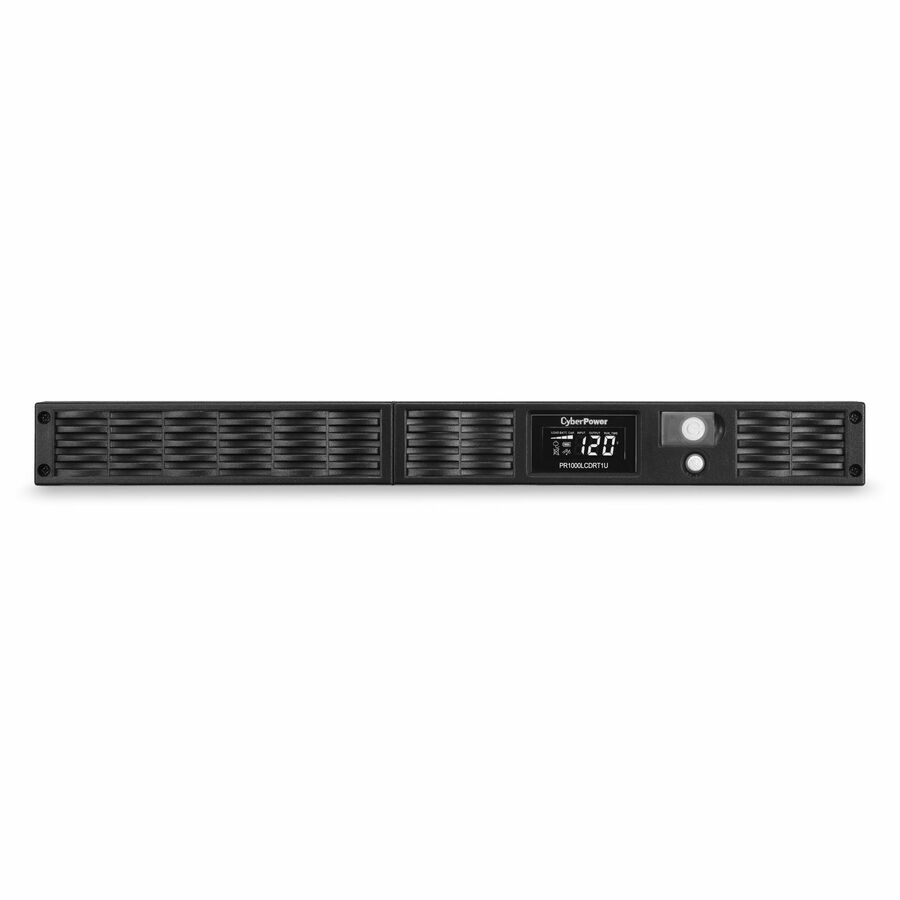

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR1000LCDRT1U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1000LCDRT1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1000LCDRT1U comes with a three-year warranty and a ,400,000 Connected Equipment Guarantee.
- Remote management: Yes
- Warranty: Three-year
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Topology: Line Interactive
- Waveform: Sine Wave
- Capacity: 1000 VA / 800 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 6 |
| Number of Critical Load Outle | 3 |
| Replaceable Battery | Yes |
| Input Frequency | 60 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| EPO Port | Yes |
| Receptacle Detail | 7 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 1 |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 6 Hour |
| Input Voltage Range | 80 V AC - 150 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Circuit Breaker Current Rating | 15 A |
| AVR Range | Boost +30% / Buck -12% |
| Load Capacity (Watt) | 800 W |
| Load Capacity (VA) | 1000 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.8 |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1030 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 1U |
| General Features | |
|---|---|
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 19.84 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $400000 Lifetime |
| Miscellaneous | |
|---|---|
| Product Name | PR1000LCDRT1U Smart App Sinewave UPS Systems |
