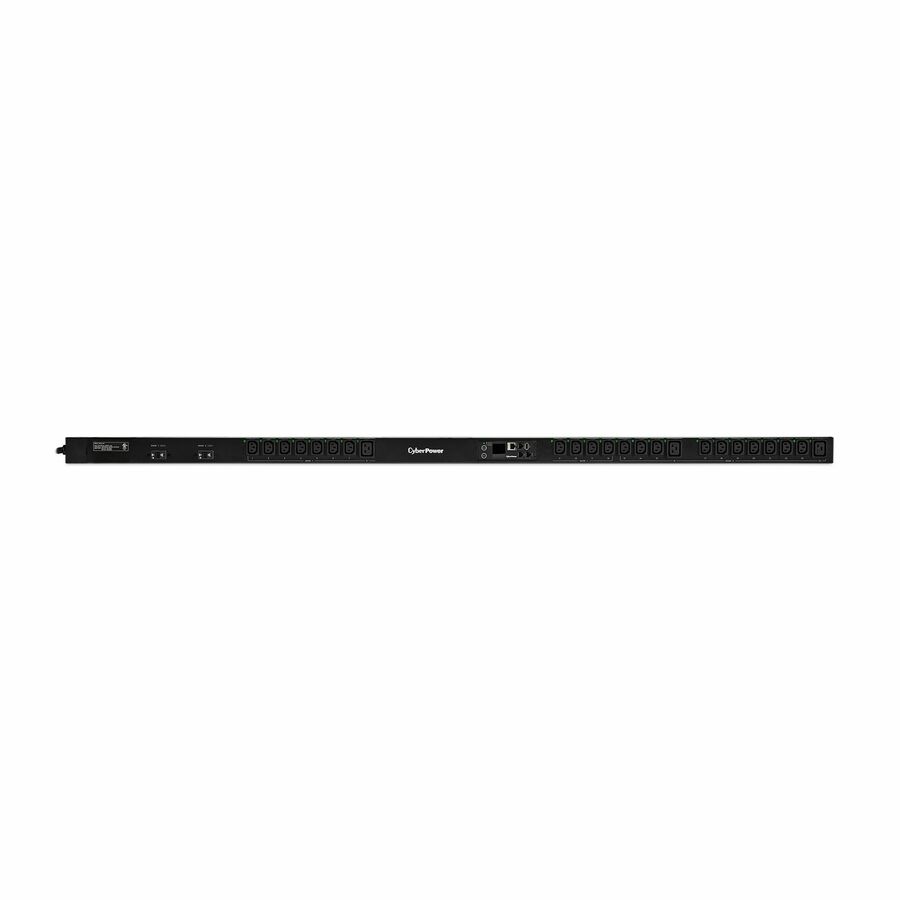

The CyberPower PDU41105 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 240V 30A output. This PDU distributes power to 21 IEC-C13 and 3 IEC-C19 receptacles from a single NEMA (L)6-30P plug with unfiltered electrical pass-through.
Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
The PDU41105 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
- Size: 0U Rackmount
- Warranty: Three-Year
- Frequency: 50Hz/60Hz
- Plug type: NEMA L6-30P
- Outlets: 21 IEC-320 C13, 3 IEC-320 C19
- Amps: 30A (Derated to 24A)
- Volts: 200-240 Vac
- Phase: Single
- Automated notifications: E-mail, SMS, Text and SNMP Trap
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 3 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 30 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack |
| Mount Type | Wall-mountable |
| Mounting Orientation | Horizontal/Vertical |
| Rack Height | 0U |
| Appearance | |
|---|---|
| Design | Modular |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | CyberPower Systems, Inc |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Energy Star | No |
| Environmentally Friendly | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Product Name | PDU41105 |
