CyberPower PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic PDU

$ 260.99 $ 260.99
$ 260.99

$ 260.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Phase
  • Input Frequency
  • Protection Type
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Form Factor
  • Product Color
  • Color Family
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Energy Star
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

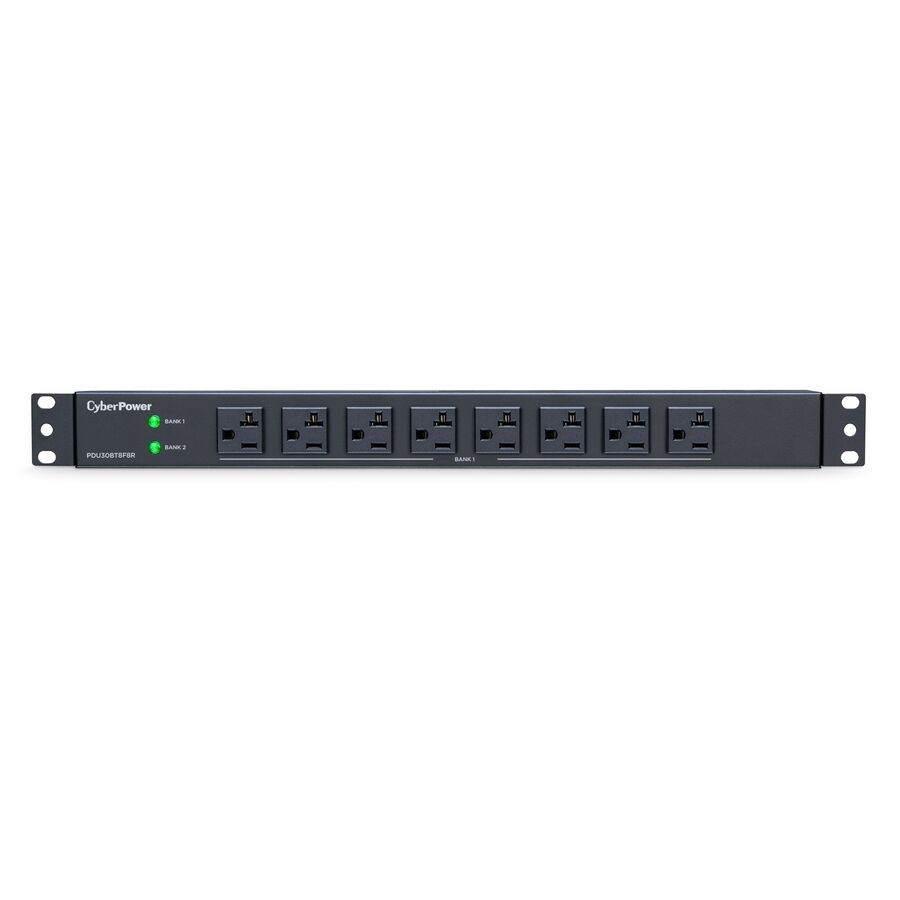

The CyberPower PDU30BT8F8R, a 16-outlet (8 front, 8 rear) rackmount basic power distribution unit (PDU), provides 100-125V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BT8F8R has rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

  • Warranty: Limited lifetime
  • Cord length (ft.): 12
  • Dimensions (in.): 17.5W x 1.75H x 2.25D
  • Size: 1U Rackmount
  • Outlets: 16 NEMA 5-20R
  • Plug type: NEMA L5-30P
  • Volts: 100-125V
  • Frequency: 50Hz/60Hz
  • Phase: Single
  • Amps: 30A (Derated to 24A)
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Basic
Phase Single Phase
Input Frequency 60 Hz
Receptacle Detail 16 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Type NEMA L5-30P
Locking Receptacles Cord Retention Tray
Input Voltage Range 100 V AC - 125 V AC
Input Voltage 120 V AC
Output Voltage 125 V AC
Output Voltage Range 100 V AC - 125 V AC
Input Current 30 A
Size / Dimensions
Form Factor Horizontal/Vertical
Mount Type Wall-mountable
Mounting Orientation Horizontal
Rack Height 1U
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 12 ft
Compliance & Certification
Maximum Operating Temperature 95°F (35°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 113°F (45°C)
Minimum Storage Temperature 5°F (-15°C)
Energy Star No
Environmentally Friendly Yes
