CyberPower PDU30BHVT8R 200 - 230 VAC 30A Basic PDU

$ 214.99 $ 214.99
$ 214.99

$ 214.99 / Units
  • Brand
  • Color - Black
  • Depth
  • Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Phase
  • Input Frequency
  • Features
  • Protection Type
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Height Adjustment (Above)
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage Range
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

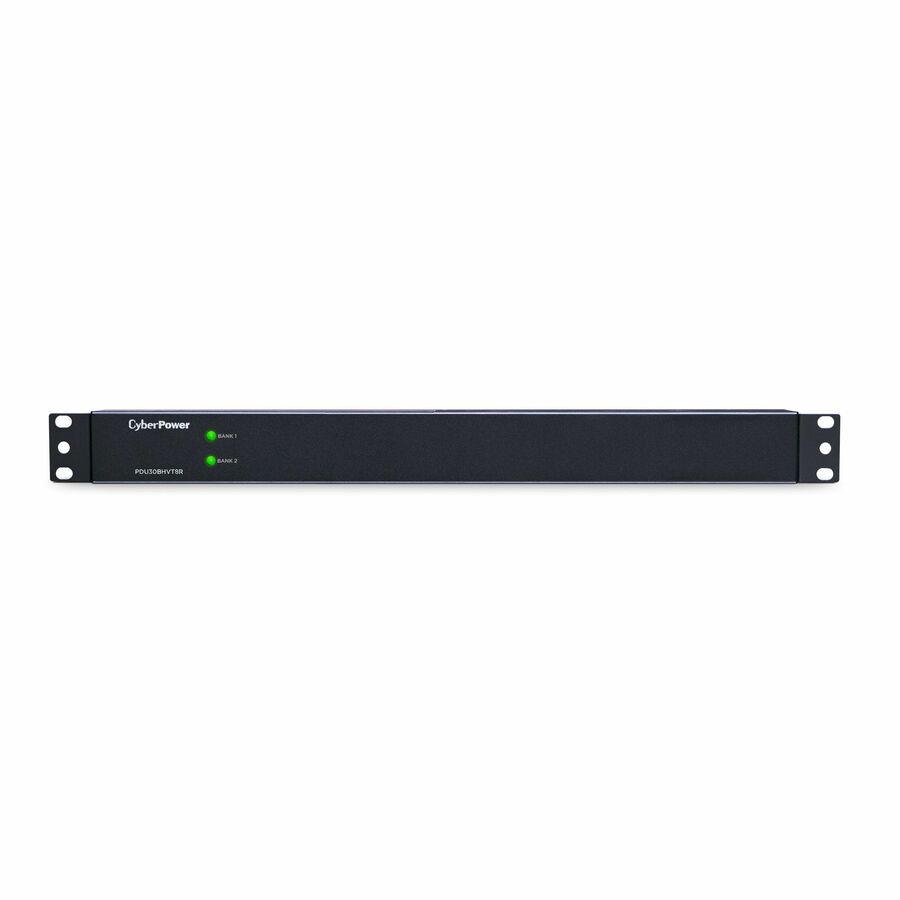

The CyberPower PDU30BHVT8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 30A output. It distributes power to 8 IEC-320 C13, 2 IEC-320 C19 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BHVT8R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

  • Cord length (ft.): 10
  • Warranty: Limited lifetime
  • Outlets: 6 IEC-320 C13, 2 IEC-320 C19
  • Size: 1U Rackmount
  • Dimensions (in.): 17.5W x 1.75H x 1.5D
  • Plug type: NEMA L6-30P
  • Volts: 208 - 230 V
  • Frequency: 50Hz/60Hz
  • Phase: Single
  • Amps: 30A (Derated to 24A)
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Basic
Phase Single Phase
Input Frequency 60 Hz
Receptacle Detail 2 x IEC 60320 C19
Receptacle Type IEC 60320 C19
Plug/Connector Type NEMA L6-30P
Input Voltage Range 200 V AC - 230 V AC
Input Voltage 230 V AC
Output Voltage Range 200 V AC - 230 V AC
Input Current 30 A
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 1U
Maximum Height Adjustment (Above) 1.8"
Appearance
Color Black
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 95°F (35°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 113°F (45°C)
Minimum Storage Temperature 5°F (-15°C)
Environmentally Friendly Yes
Brand CyberPower Systems, Inc
UPC/GTIN 649532902156
MPN PDU30BHVT8R
Unit Count 1 Units
Warranty Lifetime
