CyberPower PDU30BHVT8R 200 - 230 VAC 30A Basic PDU

$ 211.99 $ 211.99
$ 211.99

$ 211.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Phase
  • Input Frequency
  • Features
  • Protection Type
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage Range
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

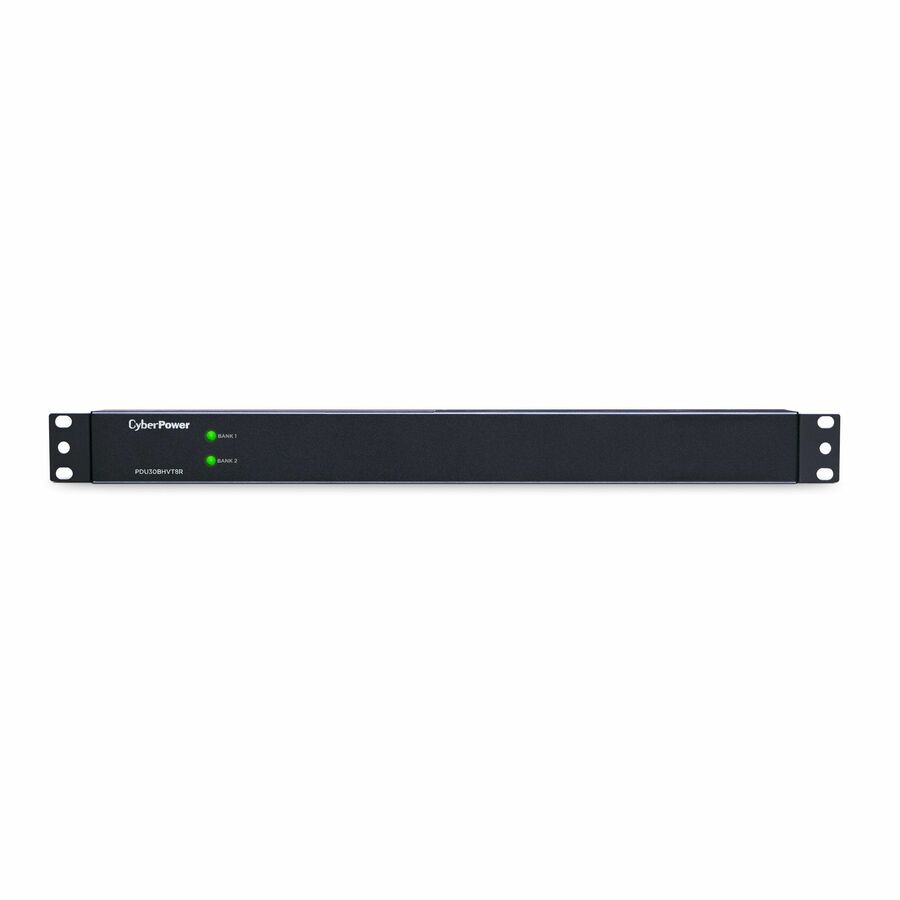

The CyberPower PDU30BHVT8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 30A output. It distributes power to 8 IEC-320 C13, 2 IEC-320 C19 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BHVT8R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

  • Dimensions (in.): 17.5W x 1.75H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime
  • Outlets: 6 IEC-320 C13, 2 IEC-320 C19
  • Size: 1U Rackmount
  • Frequency: 50Hz/60Hz
  • Plug type: NEMA L6-30P
  • Volts: 208 - 230 V
  • Phase: Single
  • Amps: 30A (Derated to 24A)
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Basic
Phase Single Phase
Input Frequency 60 Hz
Receptacle Detail 2 x IEC 60320 C19
Receptacle Type IEC 60320 C19
Plug/Connector Type NEMA L6-30P
Input Voltage Range 200 V AC - 230 V AC
Input Voltage 230 V AC
Output Voltage Range 200 V AC - 230 V AC
Input Current 30 A
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 1U
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 95°F (35°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 113°F (45°C)
Minimum Storage Temperature 5°F (-15°C)
Environmentally Friendly Yes
Brand CyberPower Systems, Inc
UPC/GTIN 649532902156
MPN PDU30BHVT8R
Unit Count 1 Units
Warranty Lifetime
