CyberPower PDU15B2F8R 100 - 125 VAC 15A Basic PDU

$ 116.49 $ 116.49
$ 116.49

$ 116.49 / Units
  • Brand
  • Color - Black
  • Depth
  • Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Input Frequency
  • Protection Type
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Product Color
  • Color Family
  • Product Material
  • Length
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Height Adjustment (Above)
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Energy Star
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

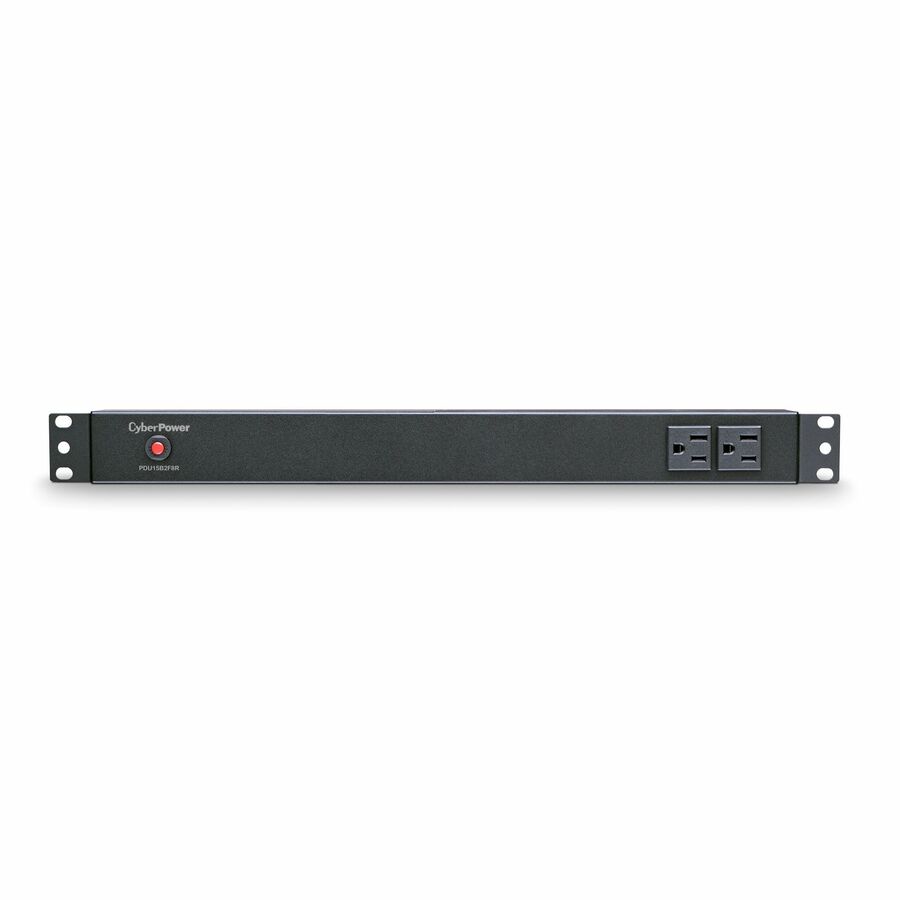

The CyberPower PDU15B2F8R, a 10-outlet (2 front, 8 rear) rackmount basic power distribution unit (PDU), provides 120V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B2F8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

  • Warranty: Limited lifetime
  • Cord length (ft.): 15
  • Outlets: 10 NEMA 5-15R
  • Size: 1U Rackmount
  • Dimensions (in.): 17.5W x 1.75H x 2.25D
  • Amps: 15A (Derated to 12A)
  • Volts: 100 - 125 V
  • Frequency: 50Hz/60Hz
  • Plug type: NEMA 5-15P
  • Phase: Single
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Basic
Input Frequency 60 Hz
Receptacle Detail 10 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Plug/Connector Type NEMA 5-15P
Input Voltage 120 V AC
Output Voltage 120 V AC
Output Voltage Range 100 V AC - 125 V AC
Input Current 15 A
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 1U
Maximum Height Adjustment (Above) 1.8"
Appearance
Color Black
General Features
Protection Type Overload Protection
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 15 ft
Compliance & Certification
Maximum Operating Temperature 95°F (35°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 113°F (45°C)
Minimum Storage Temperature 5°F (-15°C)
Energy Star No
Environmentally Friendly Yes
Brand CyberPower Systems, Inc
UPC/GTIN 649532901449
MPN PDU15B2F8R
Unit Count 1 Units
Warranty Lifetime
