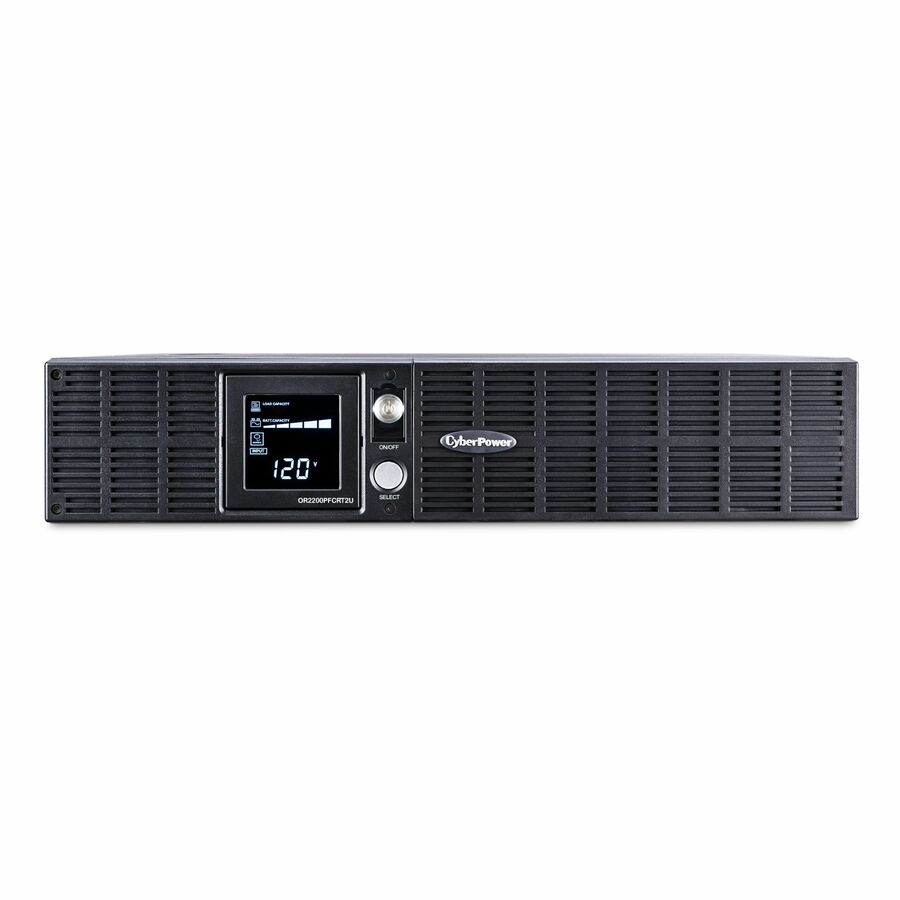

A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
- Warranty: 3 year
- Connected Equipment Guarantee: $300,000
- Management software: PowerPanel® Business Edition
- Data line protection: Telephone, Ethernet
- Communication: USB, Serial, EPO
- Outlet types: 2 � NEMA 5-20R, 6 � NEMA 5-15R
- Waveform: Sine Wave
- Plug type & cord: NEMA 5-20P, 10 ft. cord
- Topology: Line Interactive
- Capacity: 2000 VA / 1540 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 8 |
| Emergency Power OFF | Yes |
| Replaceable Battery | Yes |
| Input Frequency | 63 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-11 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Circuit Breaker | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-20P |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 10 Hour |
| Input Voltage Range | 88 V AC - 139 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1540 W |
| Load Capacity (VA) | 2000 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.8 |
| DC System Voltage | 24 V DC |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 15.50 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1470 J |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Battery Mode |
| Protection Type | Over Loading |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 374.54 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 48.5 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
| Brand | CyberPower Systems, Inc |
| UPC/GTIN | 649532609598 |
| MPN | OR2200PFCRT2U |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
CyberPower OR2200PFCRT2U PFC Sinewave UPS Systems - 2000VA/1540W, 120 VAC, NEMA 5-20P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
