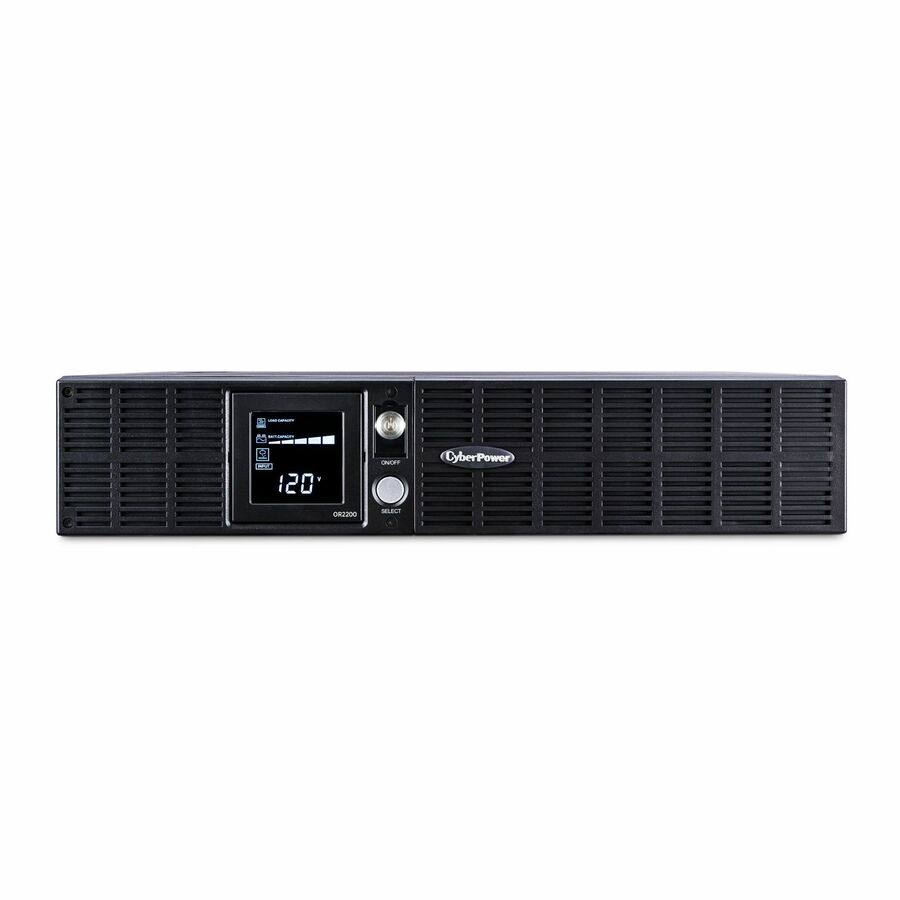

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App LCD OR2200LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for office servers, corporate and department networks, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200LCDRT2U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
- Warranty: 3 year
- ENERGY STAR® certified: Yes
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Communication: USB, Serial, SNMP
- Outlet types: 8 � NEMA 5-20R
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-20P (right angle), 10 ft. cord
- Waveform: Simulated Sine Wave
- Capacity: 2000 VA / 1320 W
- Topology: Line Interactive
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 8 |
| Replaceable Battery | Yes |
| Input Frequency | 63 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 4 |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 2000 VA |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1840 J |
| Networking & Connectivity | |
|---|---|
| Modem (RJ-11) | Yes |
| Network Management | SNMP Manageable |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Alarm | Battery Mode |
| Protection Type | Surge |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
| Brand | CyberPower Systems, Inc |
| UPC/GTIN | 649532610037 |
| MPN | OR2200LCDRT2U |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
