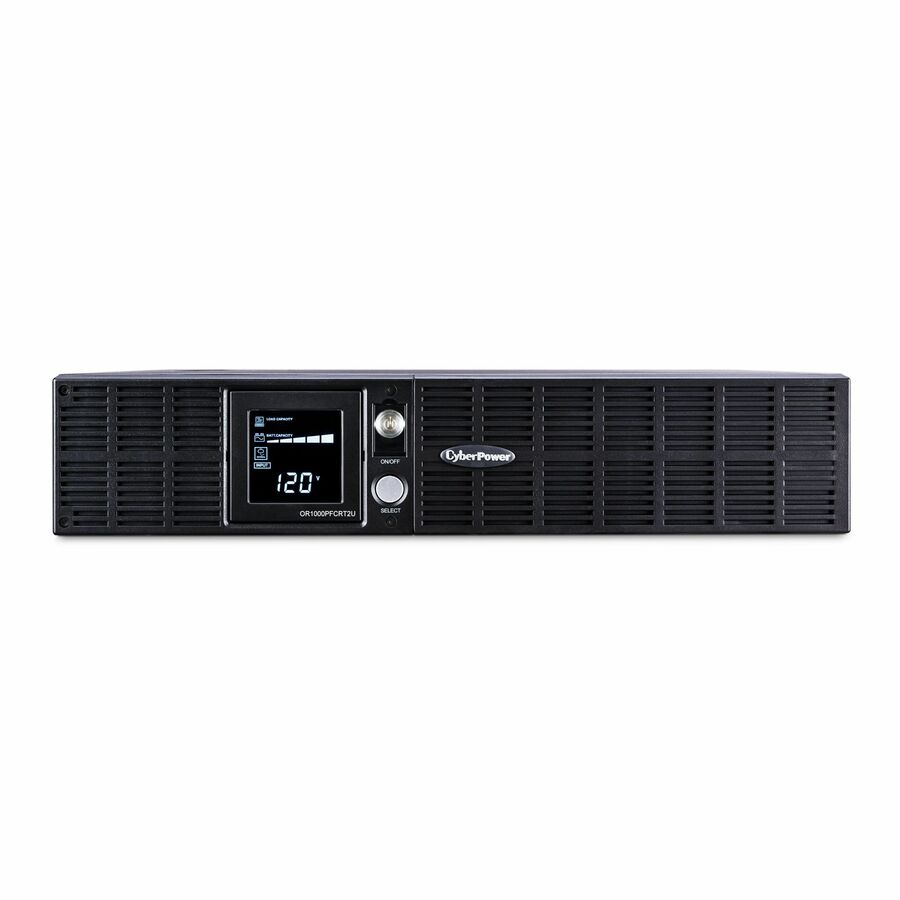

A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR1000PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices and telecom equipment requiring Active PFC power source compatibility. The OR1000PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1000PFCRT2U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
- Connected Equipment Guarantee: $300,000
- Warranty: 3 year
- Management software: PowerPanel® Business Edition
- Communication: USB, Serial, EPO
- Data line protection: Telephone, Ethernet
- Outlet types: 8 x NEMA 5-15R
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Waveform: Sine Wave
- Capacity: 1000 VA / 700 W
- Topology: Line Interactive
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Circuit Breaker | Yes |
| Surge Suppression | Yes |
| EPO Port | Yes |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 10 Hour |
| Input Voltage Range | 88 V AC - 139 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 700 W |
| Load Capacity (VA) | 1000 VA |
| Output Power Factor | 0.7 |
| DC System Voltage | 24 V DC |
| Backup/Run Time (Full Load) | 6.60 Minute |
| Backup/Run Time (Half Load) | 17.90 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1470 J |
| Networking & Connectivity | |
|---|---|
| Modem (RJ-11) | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Maximum Height Adjustment (Above) | 3.50" |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 131.18 W |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Minimum Operating Humidity (Non-condensing) | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 48.5 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
| Brand | CyberPower Systems, Inc |
| UPC/GTIN | 649532616473 |
| MPN | OR1000PFCRT2U |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
