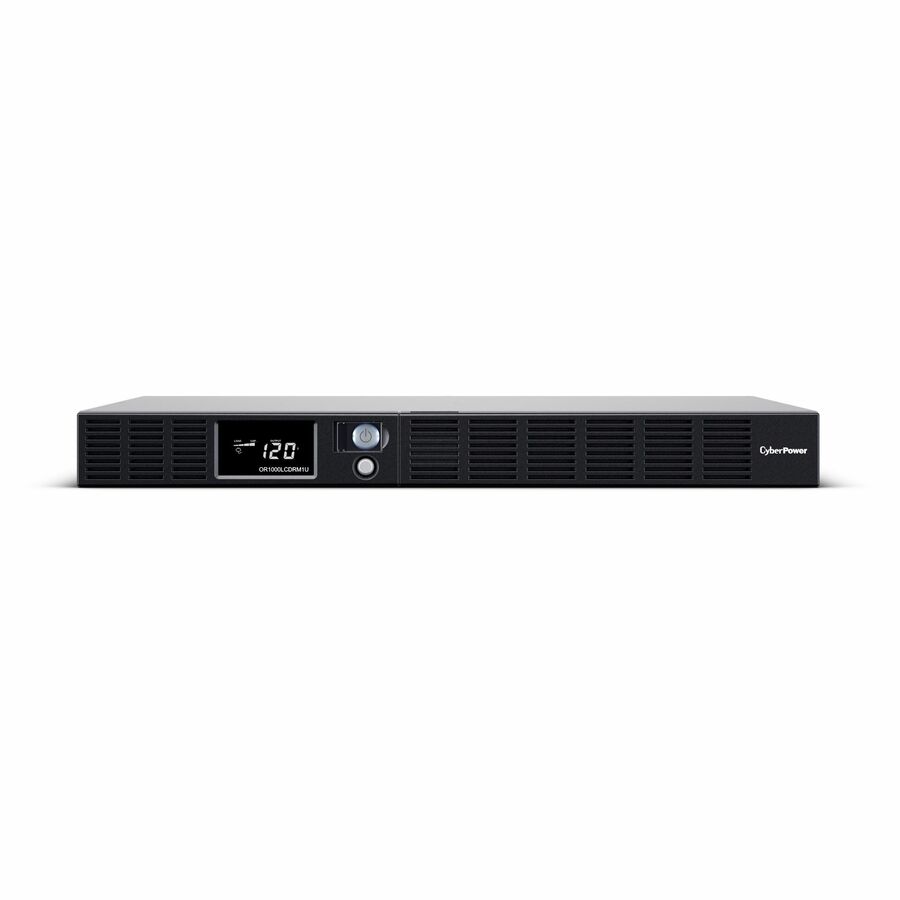

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 � NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 4 |
| Emergency Power OFF | No |
| Replaceable Battery | Yes |
| Input Frequency | 63 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 2 |
| Battery Life | 6 Year |
| Battery Capacity | 7000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Number of Batteries | 4 |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 90 V AC - 140 V AC |
| Input Voltage | 120 V AC |
| Load Capacity (Watt) | 600 W |
| Load Capacity (VA) | 1000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Transfer Time | 8 ms |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1150 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Bypass Switch | Not Provided |
| Hot Swappable | Yes |
| Alarm | Battery Mode |
| Protection Type | Sag |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 95°F (35°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 |
