Prevent business interruptions and safeguard mission-critical enterprise network equipment.

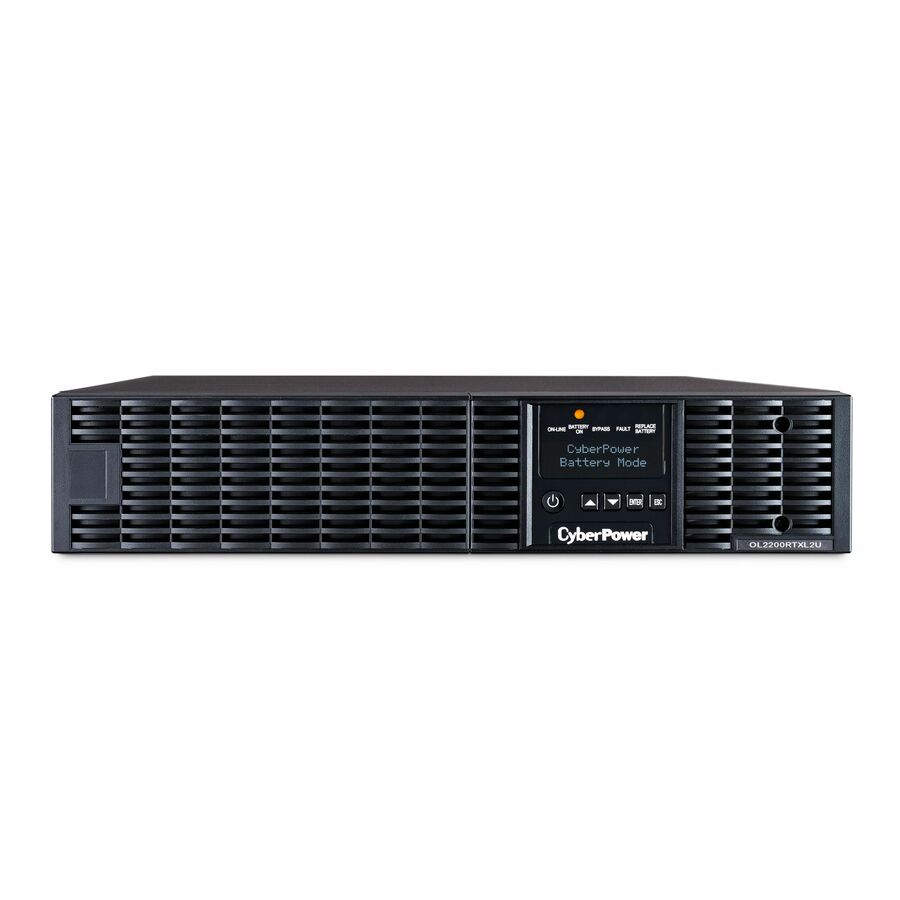

The CyberPower OL2200RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL2200RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a ,400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
- Warranty: 3 year
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Outlet types: 6 � NEMA 5-20R, 1 � L5-20R
- Monitoring & Management: USB, Serial, Network, Relay, EPO
- Plug type & cord: NEMA L5-20P w/5-20P Adapter, 10 ft. cord
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Capacity: 2200 VA / 1800 W
- Power Factor (PF): 0.82
- Topology: Double-Conversion
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Crest Factor | 3:1 |
| Replaceable Battery | Yes |
| Input Frequency | 70 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| Dataline Protection | RJ-11 |
| Energy Saving | ECO Mode Efficiency >95% |
| EPO Port | Yes |
| Receptacle Detail | 1 x NEMA L5-20R |
| Receptacle Type | NEMA L5-20R |
| Plug/Connector Type | NEMA L5-20P |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 6 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Circuit Breaker Current Rating | 30 A |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 2200 VA |
| Input Power Factor | 0.99 |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.8 |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1335 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Alarm | UPS Fault |
| Protection Type | Short Circuit |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 158.55 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $400000 Lifetime |
