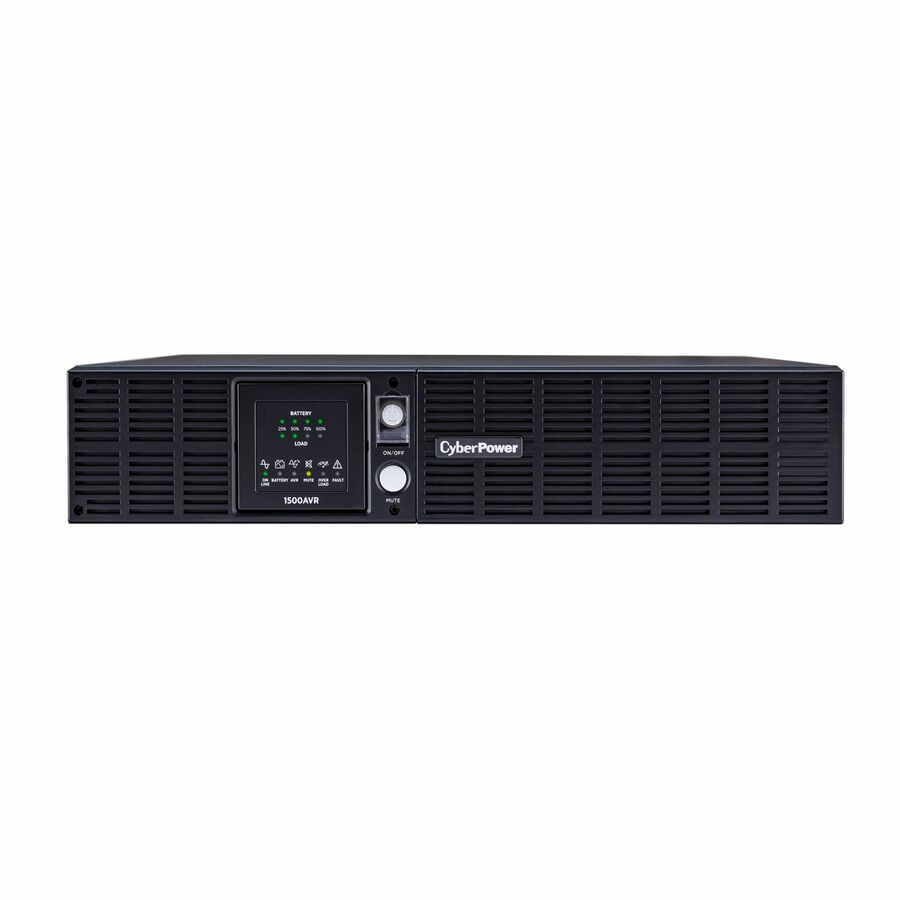

A rack/tower UPS with line interactive topology, the CyberPower Intelligent LCD CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CPS1500AVR comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
- Warranty: 3 year
- Connected Equipment Guarantee: $300,000
- Environmental sensor: Yes, with optional RMCARD205
- Remote management: Yes
- Outlet types: 8 � NEMA 5-15R
- Communication: USB, Serial, SNMP
- Data line protection: Telephone, Network, Coaxial
- Outlets: 8 surge + battery backup
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Runtime (half/full): 18 minutes / 7 minutes
- Output: 120 VAC ± 10%
- Waveform: Simulated Sine Wave
- Topology: Line Interactive
- Capacity: 1500 VA / 900 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 8 |
| Replaceable Battery | Yes |
| Input Frequency | 63 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | Coax |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Battery Capacity | 7000 mAh |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 90 V AC - 140 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Circuit Breaker Current Rating | 15 A |
| Load Capacity (Watt) | 900 W |
| Load Capacity (VA) | 1500 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.6 |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1840 J |
| Networking & Connectivity | |
|---|---|
| Modem (RJ-11) | Yes |
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Alarm | Battery Mode |
| Protection Type | Spike |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 Lifetime |
