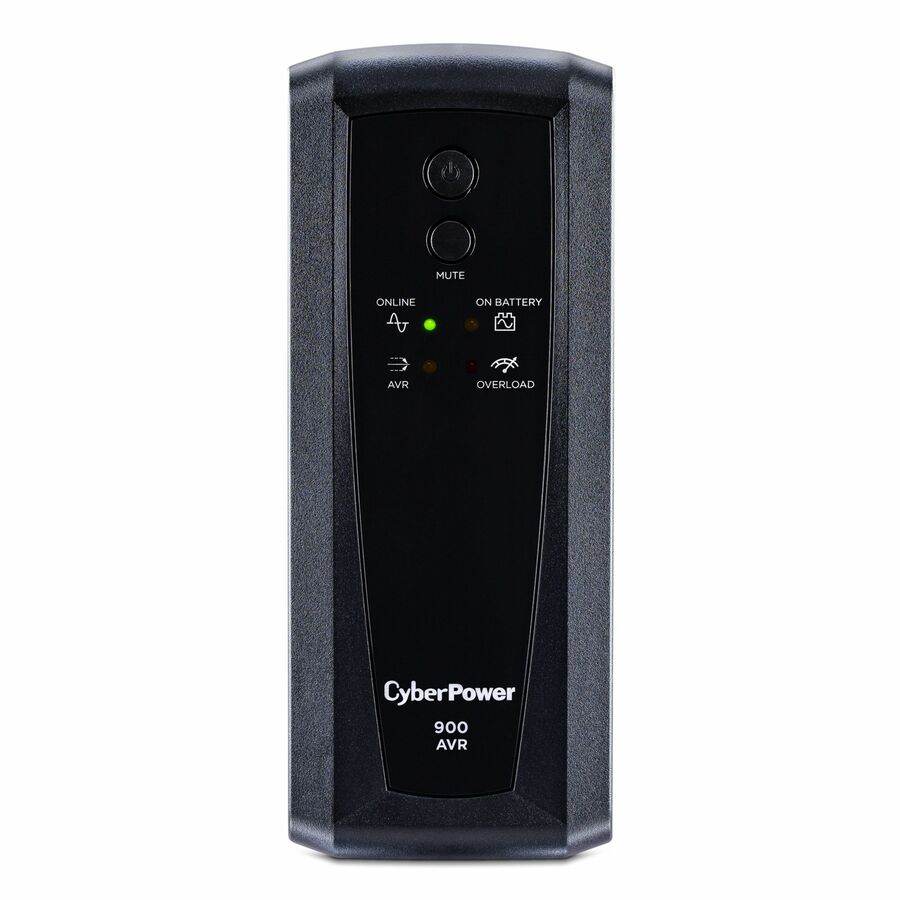

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP900AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP900AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP900AVR comes with a three-year warranty (including coverage of batteries) and a ,300,000 Connected Equipment Guarantee.
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $300,000
- Data line protection: Ethernet, Coaxial
- Management software: PowerPanel® Personal
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlets: 10 (5 surge, 5 surge + battery backup)
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Capacity: 900 VA / 560 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 5 |
| Emergency Power OFF | No |
| Replaceable Battery | Yes |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass |
| Circuit Breaker | Yes |
| Receptacle Detail | 10 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 5 |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 2 |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 88 V AC - 144 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 560 W |
| Load Capacity (VA) | 900 VA |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 16 Minute |
| Transfer Time | 8 ms |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1500 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini-tower |
| General Features | |
|---|---|
| Bypass Switch | Not Provided |
| Hot Swappable | Yes |
| Alarm | Fault |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $300000 |
| Miscellaneous | |
|---|---|
| Product Name | CP900AVR AVR UPS Systems |
