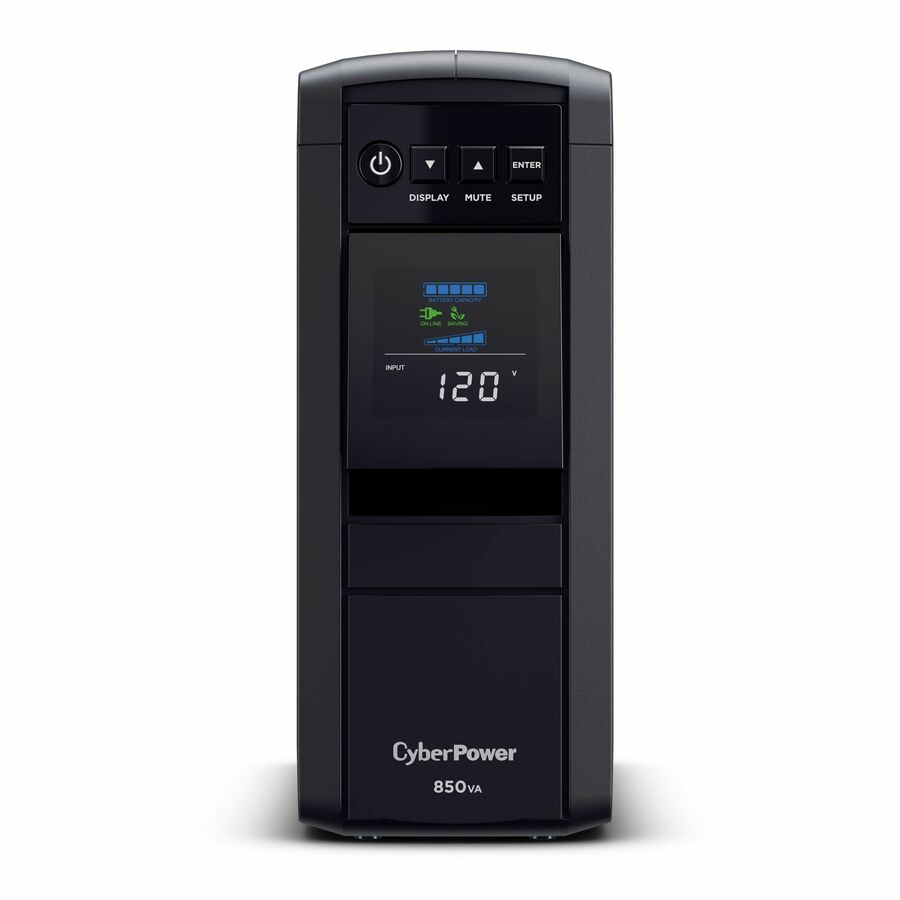

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP850PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.
The CP850PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.
The CP850PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850PFCLCD comes with a three-year warranty (including coverage of batteries) and a ,250,000 Connected Equipment Guarantee.
- Connected Equipment Guarantee: $250,000
- ENERGY STAR® certified: Yes
- Warranty: 3 year
- Data line protection: Network
- Management software: PowerPanel® Personal
- Outlet types: 10 � NEMA 5-15R
- Communication: USB, Relay
- Output: 120Vac ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Topology: Line Interactive
- Waveform: Sine Wave
- Capacity: 850VA/510 W
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 5 |
| Replaceable Battery | Yes |
| Input Frequency | 63 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Receptacle Detail | 10 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 5 |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 88 V AC - 144 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 510 W |
| Load Capacity (VA) | 850 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1150 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini-tower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 5 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Operating Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $250000 Lifetime |
| Miscellaneous | |
|---|---|
| Product Name | CP850PFCLCD PFC Sinewave UPS Systems |
