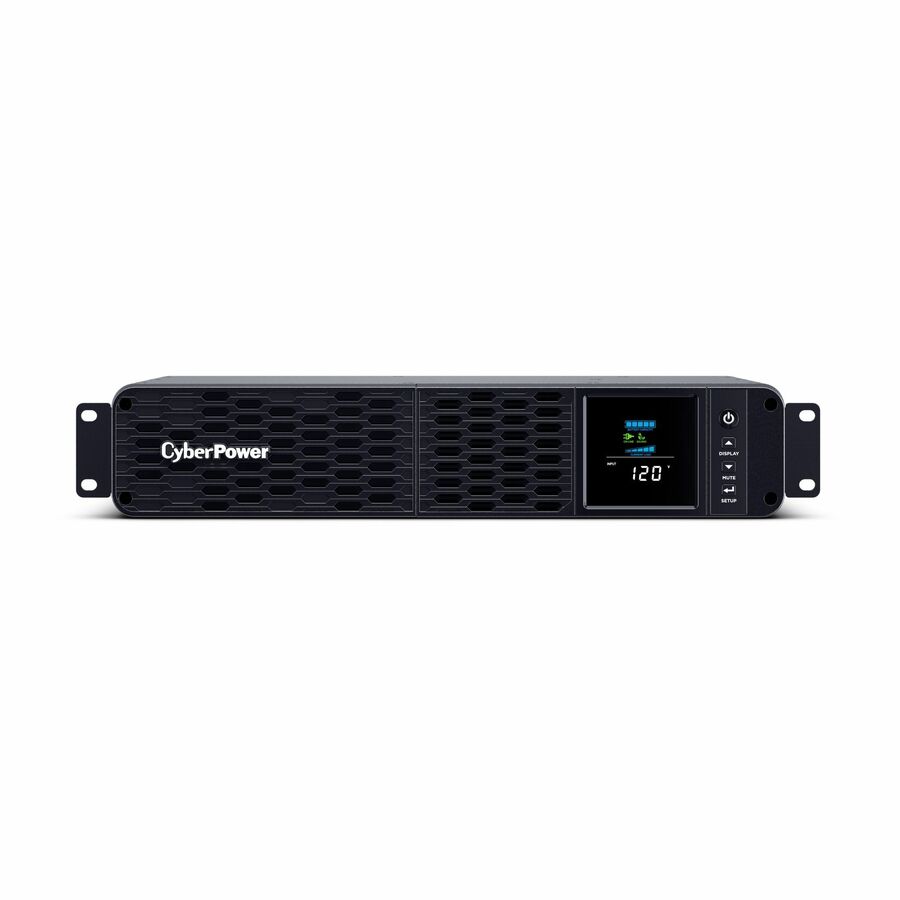

The CP2000PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
The CP2000PFCRM2U is equipped with Automatic Voltage Regulation (AVR) technology, enabling it to stabilize minor voltage fluctuations without engaging the battery, thereby extending battery life. It features an advanced multifunction control interface with a color LCD, providing real-time system status and alert notifications for at-a-glance monitoring. For enhanced system oversight, remote management and monitoring capabilities are supported via optional Remote Network Management Card or Cloud Monitoring Card integration. With a compact chassis depth of just 10.8 inches, the CP2000PFCRM2U is optimized for deployment in shallow-depth rack environments where space constraints are a critical consideration.
The CP2000PFCRM2U comes with a three-year warranty (including coverage of batteries) and a ,500,000 Connected Equipment Guarantee.
- Capacity: 2000VA / 1200W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120Vac ± 5%
- Runtime (half/full): 9 minutes / 2.2 minutes
- Plug type & cord: NEMA 5-20P, 6 ft. cord
- Outlet number: 8 surge + battery backup
- Outlet types: 8 � NEMA 5-20R
- Critical Load Outlets: 4
- Communication: USB, SNMP
- Data line protection: Network
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $500,000
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 8 |
| Replaceable Battery | Yes |
| Input Frequency | 60 Hz |
| EMI/RFI Noise Filter | Yes |
| Overload Protection | Yes |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Circuit Breaker | Yes |
| Surge Suppression | Yes |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Battery Capacity | 9000 mAh |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 82 V AC - 144 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1200 W |
| Load Capacity (VA) | 2000 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.6 |
| Backup/Run Time (Full Load) | 2.20 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Transfer Time | 8 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1500 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Battery Mode |
| Manufacturer | CyberPower Systems, Inc |
| Thermal Dissipation | 16.88 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $500000 Lifetime |
