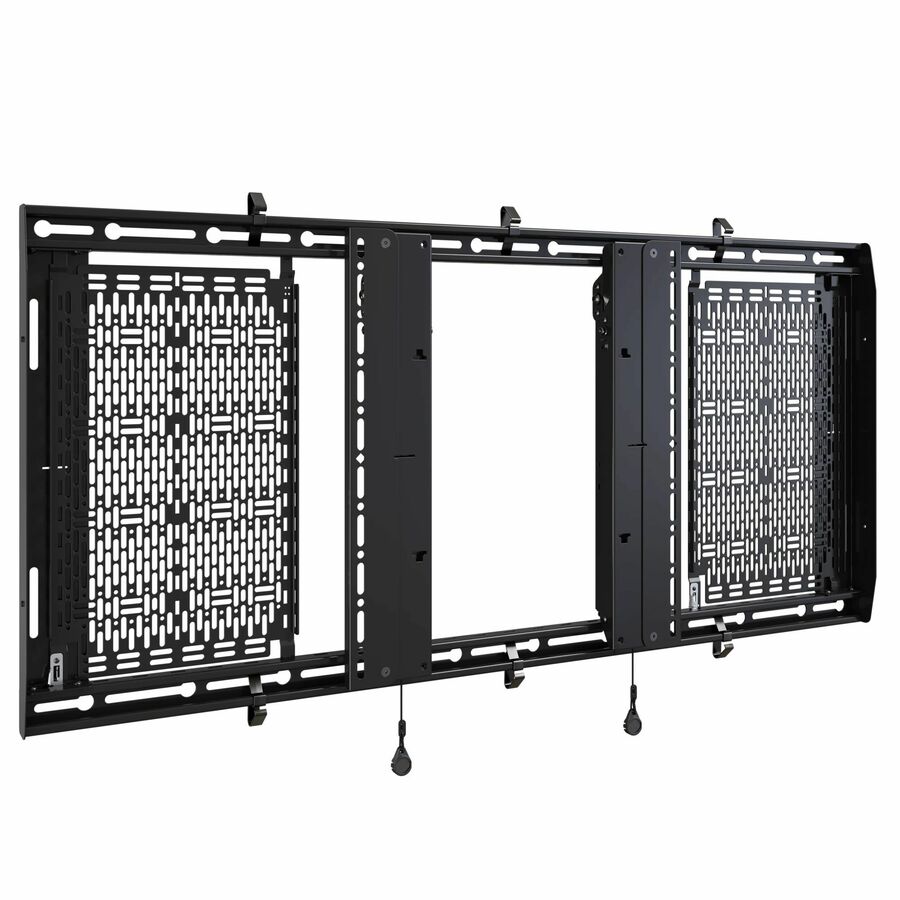

This all-in-one configurable wall mounting system is designed to improve efficiency by streamlining installation workflow. AV professionals can increase productivity and add money to the bottom line with this new system, especially for mass rollouts. Install on any wall and neatly store AV devices with simple, unparalleled service access. Install 2-6 small devices behind the display on integrated Lever Lock storage panels. Tempo Wall Mount System is thoughtfully designed with feedback from installers for faster deployments.
UPDATES: As of October 2024, both the AS3LDP and the AS3LDP7 will ship with six cable management clips for a professional-looking installation. Both SKUs will also ship with a new home latch lockout clip that prevents the home latch from accidentally locking until pull cords are properly stowed.
Accelerate AV Installations
- One part number, one box, one order!
- Ship to site pre-loaded with small devices and cabling.
Save Money
- Reduce onsite installation personnel and time.
- Minimize last-minute shipping costs of missing parts.
Feature Flexibility
- Wall plate and extending interface design facilitates centering display in the right position.
- 10° of adjustable display tilt in 2.5° increments.
Streamlined for Success
- Total installation depth facilitates ADA compliance*
- OSHPD approved and UL & TUV certified.
- Up to 1" (25 mm) post-install leveling adjustment.
*When display depth is less than 2" (51 mm)
Integrated Storage
- Ships with two 15"x10" Lever Lock™ plates with space to add more.
- Storage plates can be moved along the mounting rail for best placement of components.
- Now includes six cable management clips to keep cables tidy for a professional-looking installation (Shipping as of October 2024).
Simplify Service
- 12.6" (320 mm) of service access.
- Open wall plate for easy positioning of power and data sources and in-wall storage.
- Home latch lockout clip prevents home latch from accidentally locking until pull cords are properly stowed.
- Makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system
- Can withstand a maximum weight of 200 lb
- Compatible with the screen size of 86"
- Lateral Adjustment feature for better reliance and usability
- Stud application/usage for better dependability with added efficiency
| Brand | |
|---|---|
| Brand | Legrand Group |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 86" |
| Minimum Screen Size Supported | 49" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 200 lb |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 970 x 450 |
| Mount Surface | Wall |
| Orientation | Landscape |
| Minimum Tilt Angle | -10° |
| Maximum Tilt Angle | 10° |
| Appearance | |
|---|---|
| Mount Function | Tilt |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Mount Pattern Compatibility T | Universal |
| Manufacturer | Legrand Group |
