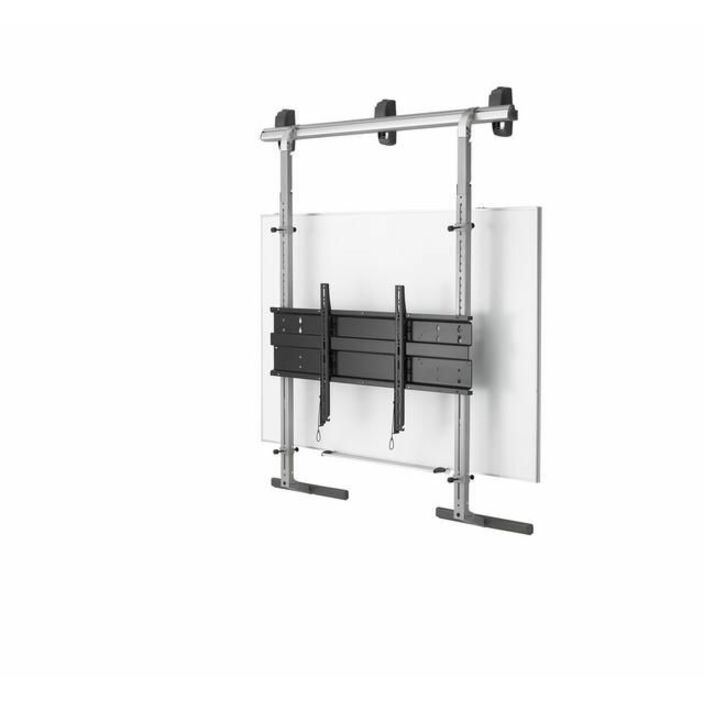

The Over-the-Whiteboard Interactive Display Mount allows for easy installation and adjustment of heavy interactive flat panel displays over existing chalkboards or whiteboards. The mount comes largely pre-assembled with minimal hardware, reducing installation time. It also provides height variability to accommodate younger children or those seated at lower levels.
- Telescoping legs allow mount to be adjusted easily around classroom obstacles
- Plumb adjustment up to 1.5° to compensate for uneven walls
- When installed, mount allows for a minimum of 4" (102mm) clearance from wall
- Integrated lateral shift allows for easy adjustment left or right
- Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16" on-center studs, or two brackets for 24" on-center studs are included
- Installs into various wall types (wood, concrete, steel, cinder-block)
- Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation
- Display height adjustment range of 26" (660 mm)
- Heavy-duty weight capacity of 310 lbs (140.6 kg)
- Accommodates typical large displays between 50-80" andVESA® up to 1020 - 500 mm, specify FHB7036 bracket to extend to VESA® 1020 - 600 mm
| Brand | |
|---|---|
| Brand | Legrand Group |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 80" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 309.97 lb |
| Size / Dimensions | |
|---|---|
| Mounting Pattern | 400 x 100 |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Brand | Legrand Group |
| UPC/GTIN | 841872172026 |
| MPN | OB1U |
| Unit Count | 1 Units |
| Warranty | 10 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
