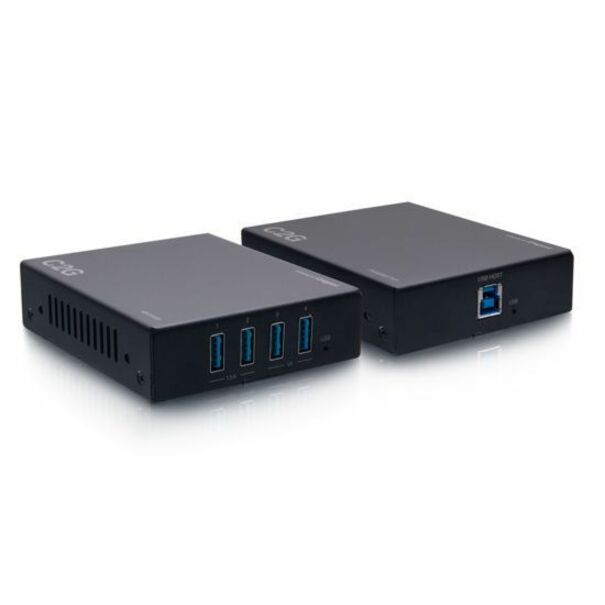

C2G's Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.
No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.
This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.
Tested and Proven
This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives - ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.
This USB extender supports data transmission only-no DisplayPort Alt Mode video support.
This package includes:
1 � USB 3.0 Extender (Transmitter)
1 � USB 3.0 Extender (Receiver)
1 � 24V/2A Power Supply with US/EU/UK/AU Plugs
2 � 4pin-3.5mm Phoenix Connector (male)
4 � Mounting Ear
8 � Machine Screw (KM3*4)
- Extension of USB 3.2 data up to 328 ft (100m)over Cat6a cable
- USB 3.2 connectivity with data transfer rateup to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Supports RS-232 pass-through and FSYNCGPIO pass-through (for industry camera use)
- Supports bi-directional 24V PoC
- Plug and play - no drivers required
- Perfect for extending cameras, white boards,storage drives, and other high bandwidthUSB devices
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Input Voltage | 24 V |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 7 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 640 MB/s |
| Maximum Extended Range | 328.08 ft |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Brand | Legrand Group |
| UPC/GTIN | 757120542650 |
| MPN | C2G54265 |
| Unit Count | 1 Units |
| Warranty | 5 Year |
