Broadcom Quad-Port 25 Gb/s SFP28 Ethernet PCI Express 4.0 x16 Network Interface Card

$ 609.49 $ 609.49
$ 609.49

$ 609.49 / Units
  • Brand
  • Color - Not Specified
  • Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Network Technology
  • Expansion Slot Type
  • Total Number of Ports
  • Host Interface
  • Form Factor
  • Media Type Supported
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

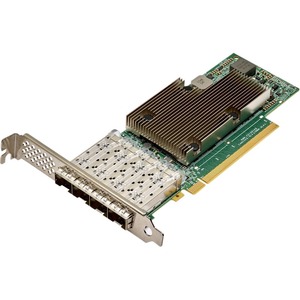

The Broadcom BCM957504-P425G is a quad-port 25 Gb/s PCI Express 4.0 x16 network interface card that supports SFP28/SFP+ optical modules and copper directattach cables. The card uses the Broadcom BCM57504 100GbE MAC controller with an integrated quad-channel 25GbE SFI transceiver.

Features

  • Quad-port pluggable media interface, which is compatible with an SFP28/SFP+ optical transceiver or a copper direct-attach cable.
  • Industry's most secure PCIe adapter solution leveraging Broadcom's BroadSAFE® technology
  • Multi-Host Support: Dual-Host x8 mode.
  • Fully compliant with the SFF-8402 standard.
  • x16 PCI Express 4.0 compliant.
  • SR-IOV with up to 1k virtual functions (VFs).
  • Function-Level Reset (FLR) support.
  • TruFlow™ flow processing engine.
  • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap.
  • vSwitch Acceleration.
  • Tunnel-aware stateless offloads.
  • DCB support - PFC, ETS, QCN, DCBx.
  • RDMA over Converged Ethernet (RoCE)
  • Network Controller Sideband Interface (NC-SI).
  • SMBus 2.0.
  • MCTP over SMBus.
  • Jumbo frames up to 9 KB.
  • Advanced congestion avoidance.
  • Multiqueue, NetQueue, and VMQ.
  • IPv4 and IPv6 offloads.
  • TCP, UDP, and IP checksum offloads.
  • Large send offload (LSO).
  • Large receive offload (LRO).
  • TCP segmentation offload (TSO).
  • Receive-side scaling (RSS).
  • Transmit-side scaling (TSS).
  • VLAN insertion/removal.
  • Interrupt coalescing.
  • Network boot-PXE, UEFI.
  • iSCSI boot.
  • MSI and MSI-X.
  • FRU support.
Applications

Quad-port 25-Gigabit SFP28 Ethernet network interface card for data centers or cloud computing.
  • 25Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
  • The PCI Express 4.0 x16 interface provides smooth data transfer and outstanding performance
  • This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
  • 25GBase-X network technology for convenient, easy sharing of data and information with maximum feasibility
Brand
Brand Broadcom Corporation
Networking & Connectivity
Network Technology 25GBase-X
Size / Dimensions
Form Factor Plug-in Card
Appearance
Color Not Specified
General Features
Manufacturer Broadcom Corporation
Expansion Slots
Expansion Slot Type SFP28
Misc Ports
Total Number of Ports 4
Host Interface PCI Express 4.0 x16
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Brand Broadcom Corporation
UPC/GTIN 650861000635
MPN BCM957504-P425G
Unit Count 1 Units
