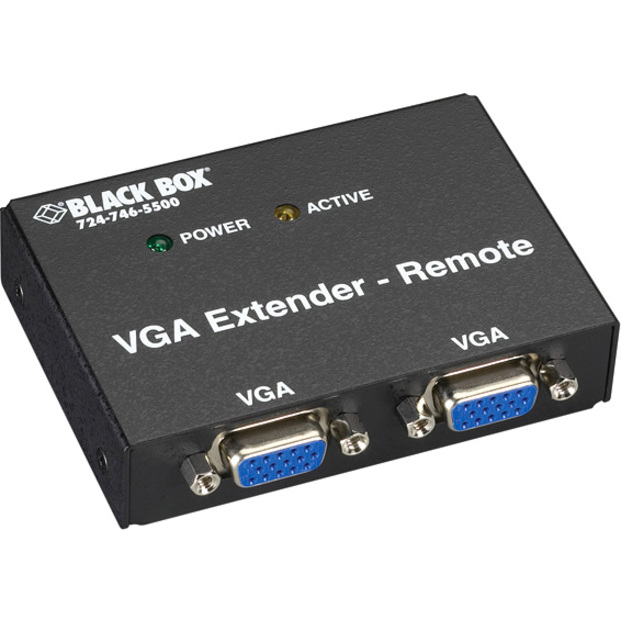

Black Box VGA Receiver, 2-Port

191.99 191.99
191.99

191.99 / Units
  • Brand
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Output Devices Supp
  • Connectivity Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • VGA Out
  • Number of VGA Outputs
  • Twisted Pair Cable Standard
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Maximum Video Resolution
  • Media Type Supported
  • Input Voltage
  • Graphics Modes
  • Maximum Operating Distance
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
  • Number of Output Devices Supported
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Connect two remote monitors in a VGA Transmitter extender application.

  • Works with the 4-port VGA Transmitter (AC555A-4-R2) to extend V GA video up to 500 feet.
  • An equalization (gain) control enables you to fine-tune the picture.
  • Has a 2-kV avalanche diode, which provides greater electrostatic discharge (ESD) protection and more reliable operation.
  • Connects to two VGA monitors.
  • Video Extender Receiver is a reliable audio/video transmission extending solution
  • 1024 x 768 maximum video resolution for a vivid, crystal clear display with added productivity
  • VGA out for your convenience and optimal audio/video output with maximum usage feasibility
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • 2 output devices supported for maximum feasibility and usage convenience
  • 500 ft maximum operating distance to allow efficient coverage and maximum usability
  • XGA graphics mode for an immersive and sharp viewing experience
Brand
Brand Black Box Corporation
GPU / Graphics
Graphics Modes XGA
Power & Battery
Input Voltage 110 V AC
Networking & Connectivity
Connectivity Technology Wired
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Camera / Webcam
Maximum Video Resolution 1024 x 768
Size / Dimensions
Receiver Width 3.30"
Receiver Weight (Approximate) 6.40 oz
Receiver Height 0.60"
Receiver Depth 2.30"
General Features
Number of Output Devices Supp 2
Maximum Operating Distance 500 ft
Manufacturer Black Box Corporation
Number of Output Devices Supported 2
Video Ports
VGA Out Yes
Number of VGA Outputs 2
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Twisted Pair Cable Standard Category 5
Compliance & Certification
Environmentally Friendly Yes
Black Box VGA Receiver, 2-Port - 2 Output Device - 500 ft Range - 1 x Network (RJ-45) - 2 x VGA Out - XGA - 1024 x 768 - Twisted Pair - Category 5
