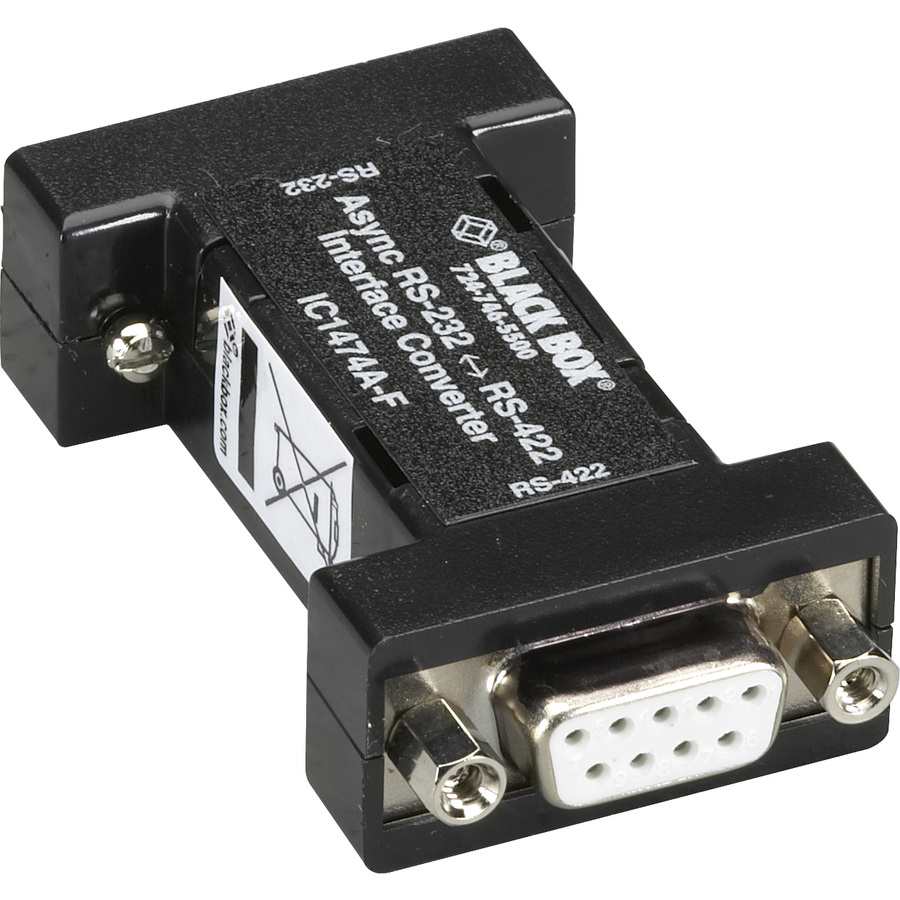

Black Box RS232 to RS-422 Interface Bidirectional Converter

$ 156.99 $ 156.99
$ 156.99

$ 156.99 / Units
  • Brand
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Total Number of Ports
  • Form Factor
  • Maximum Distance Supported
  • TAA Compliant
  • Environmentally Friendly
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Product Condition
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

  • RS422 pin-outs match an SMPTE video standard-compatible controlling device.
  • For DB9 equipment, if the peripheral operates on the RS422 signal, use only one DB9 converter. But if the transmitting and receiving equipment only operates on RS-232, use two converters.
  • Provides 115.2-kbps speed for distances up to 4000 feet (1219.2 m).
    • Interface powered by the RS232 control leads.
    • Async (data leads) only.
    • Transmit data up to 115 kbps or at distancesup to 4000-ft.
    • Operates point to point only.
    • 4-wire operation, full-duplex.
    Brand
    Brand Black Box Corporation
    Size / Dimensions
    Form Factor Internal
    General Features
    Maximum Distance Supported 1.22 km
    Manufacturer Black Box Corporation
    Product Condition New
    Misc Ports
    Total Number of Ports 2
    Compliance & Certification
    TAA Compliant Yes
    Environmentally Friendly Yes
    Brand Black Box Corporation
    UPC/GTIN 822088066347
    MPN IC1474A-F
    Unit Count 1 Units
    Warranty 1 Year
    Return Policy This product is eligible for 30-day returns. See our return policy for details.
    Black Box RS232 to RS-422 Interface Bidirectional Converter - 1 x DB-9 RS-232 , 1 x RS-422 Terminal Block - Internal
