Convert async RS232 to RS422/485 at speeds up to 19.2 kbps with distances up to 4000 ft over CATx cables. These devices are great for connecting RS232 devices into an existing RS422/485 environment in factory automation, building automation, and process automation. They can be mounted using DIN Rail and can withstand operating temperatures of -40 to 176 degrees F (-40 to 80 C).
- Switch-selectable data rates between 2400 bps and 19.2 kbps.
- Powered by 10-30 VDC, 100 mA
- Optically isolates and converts unbalanced half- or full-duplex RS-232 signals to optically isolated and balanced full-duplex RS-422 or 2-wire half- or 4-wire full-duplex RS-485.
- 2-wire half-duplex or 4-wire full-duplex, RS-422 Full-duplex
- Async (data leads) only.
- Withstands operating temperatures of -40 to 176 degrees F (-40 to 80 C).
- Transmit data up to 19.2 kbps or at distances up to 4000 ft.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| Maximum Height Adjustment (Above) | 1" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Maximum Distance Supported | 1.22 km |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Misc Ports | |
|---|---|
| Total Number of Ports | 3 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Brand | Black Box Corporation |
| UPC/GTIN | 822088100546 |
| MPN | ICD100A |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

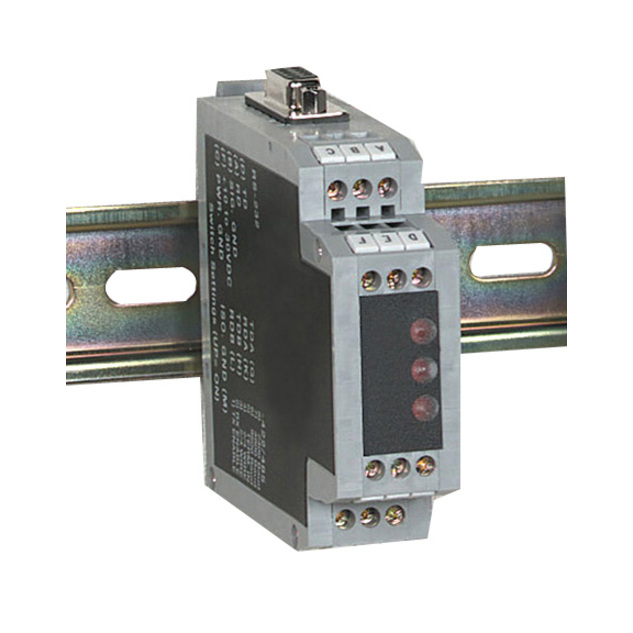

Black Box RS-232 to RS-422/RS-485 DIN Rail Converter - 2 x RS-232 Terminal Block, 1 x DB-9 - External
