Quick Facts
Further Details
- Bidirectional conversion of RS-232 to 20-mA Current Loop.
- Active or passive operation.
- Optical isolation.
- Compact size.
Further Details
The converters can be configured for active or passive Current Loop. In active mode, an async RS-232 device can communicate with a passive 20-mA Current Loop device. In passive mode, an async RS-232 device can communicate with an active 20-mA Current Loop device.
These compact solutions are configured as RS-232 (DCE), but they can be modified for DTE use with an asynchronous modem eliminator (ME212).
Each converter has a Transmit (T+ and T-) and a Receive (R+ and R-) loop. Optical isolators in both the transmit and receive loops keep out electrical interference and eliminate ground loops.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Brand | Black Box Corporation |
| UPC/GTIN | 822088011781 |
| MPN | CL1090A-F |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

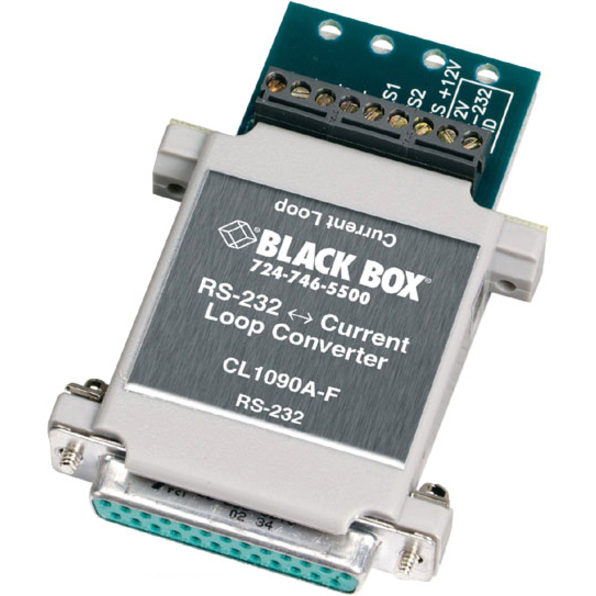

Black Box RS-232 to Current Loop Converter - Serial Port
