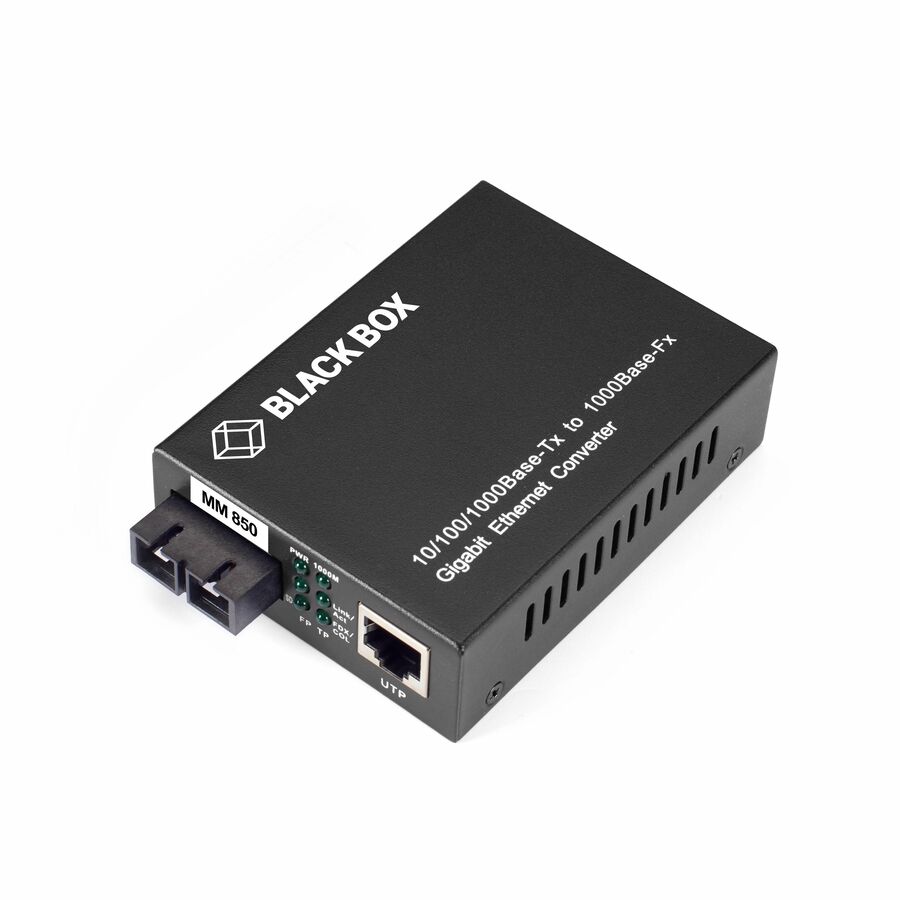

Black Box Pure Networking Transceiver Media Converter

$ 99.99 $ 99.99
$ 99.99

$ 99.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • Fiber Optic Cable Core/Claddi
  • Network Technology
  • Network (RJ-45)
  • Fiber Mode Supported
  • Plug/Connector Type
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • SC Port Type
  • Number of SC Ports
  • Form Factor
  • Ethernet Technology
  • Media Type Supported
  • Frequency
  • Maximum Distance Supported
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Packaged Quantity
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

10/100/1000BASE-TX to 1000BASE-SX

Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control, flow control, and CRC error checking.

Auto-negotiation

Completely compatible with IEEE802.3/802.3u auto-negotiation function.

Complies with Standards

The media converter meets EN60950, UL62368, and EN62368 standards.

  • Compliant to EN60950, UL62368, and EN62368
  • Converts 10/100/1000BASE-TX to 1000BASE-SX
  • Maximum transmission distance up to 550 m
  • Use as a standalone unit or with available chassis (LHGC-RACK)
  • Supports frame size of 9000 bytes
Brand
Brand Black Box Corporation
Power & Battery
Plug/Connector Type Barrel
Power Source AC Adapter
Networking & Connectivity
Network Technology 1000Base-SX
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
General Features
Frequency 60 Hz
Maximum Distance Supported 0.55 km
Manufacturer Black Box Corporation
Misc Ports
Total Number of Ports 2
SC Port Type Duplex
Number of SC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Fiber Optic Cable Core/Claddi 62.5/125 µm
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 850 nm
Compliance & Certification
Environmentally Friendly Yes
Miscellaneous
Product Name Pure Networking Transceiver Media Converter
Black Box Pure Networking Transceiver Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX - 0.55 km - AC Adapter - Standalone, Rack-mountable
