High-quality media conversion
Adapt your deployment. This media converter easily converts 10/100BASE-TX to 100BASE-FX-TP-to-ST/SC/VF-45/MT-RJ.
Smooth connection
This media converter is designed with a switch controller and buffer memory that ensures two segment types connect without issue.
Straightforward installation
Quick installation and setup. This converter can be used as a standalone unit or as a slide-on module to the 19" converter rack chassis for use in a central wiring closet.
Know link media issues immediately
Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.
- Link fault pass-through functionality
- 10-Mbps and 100-Mbps data forward rates
- Switch controller and buffer memory
- Use as a standalone unit or with available chassis (LHGC-RACK)
- Converts 10/100BASE-TX to 100BASE-FX
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Barrel |
| Power Source | AC Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Maximum Distance Supported | 2 km |
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 62.5/125 µm |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Black Box Corporation |
| UPC/GTIN | 822088130956 |
| MPN | LHC211A |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

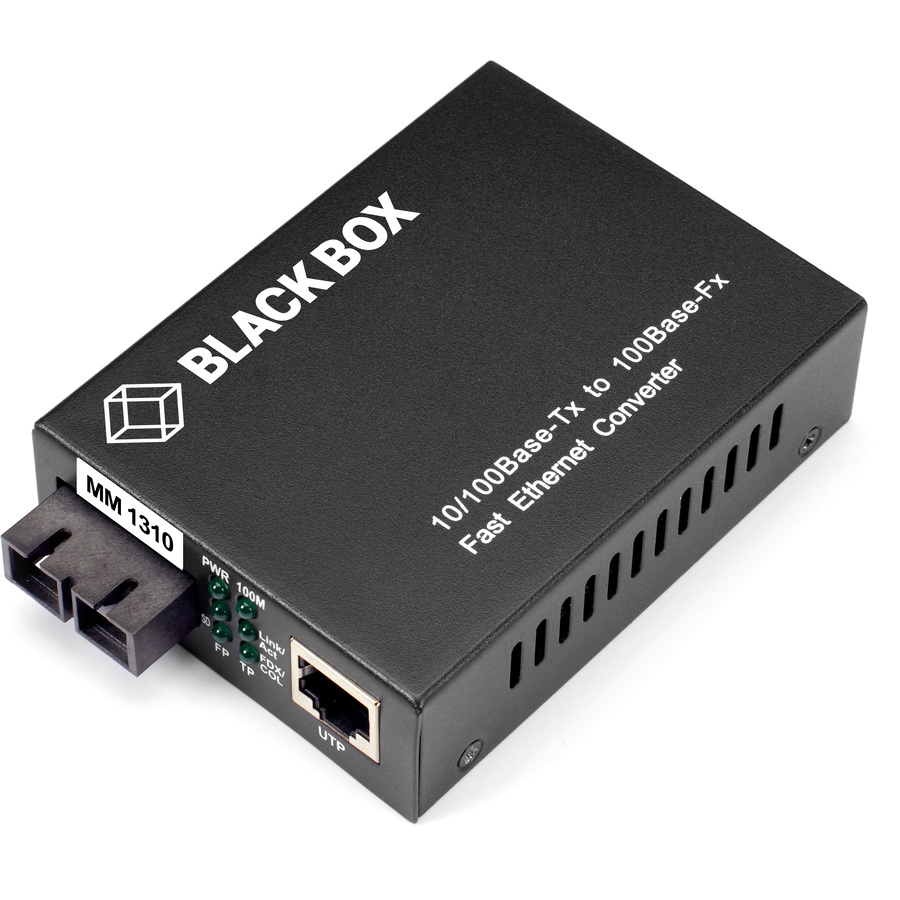

Black Box Pure Networking Fast Ethernet (100-Mbps) Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 2 km - AC Adapter - Standalone, Rack-mountable
