Black Box KVXLCDPF-100 KVM Extender

$ 743.99 $ 743.99
$ 743.99

$ 743.99 / Units
  • Brand
  • Color - Not Specified
  • Ethernet Controller Manufacturer
  • Transmitter Weight (Approxima
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Microphone Array Elements
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • DisplayPort
  • Headphone/Microphone Combo Port
  • Form Factor
  • Rack Height
  • Receiver Width
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Weight (Approximate)
  • Transmitter Height
  • Transmitter Width
  • Input Voltage
  • Graphic Mode
  • Maximum Operating Distance
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Device Type
  • Manufacturer Website Address
  • Maximum Video Resolution (Content)
  • Number of Computers Supported
  • Number of Local Users Supported
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

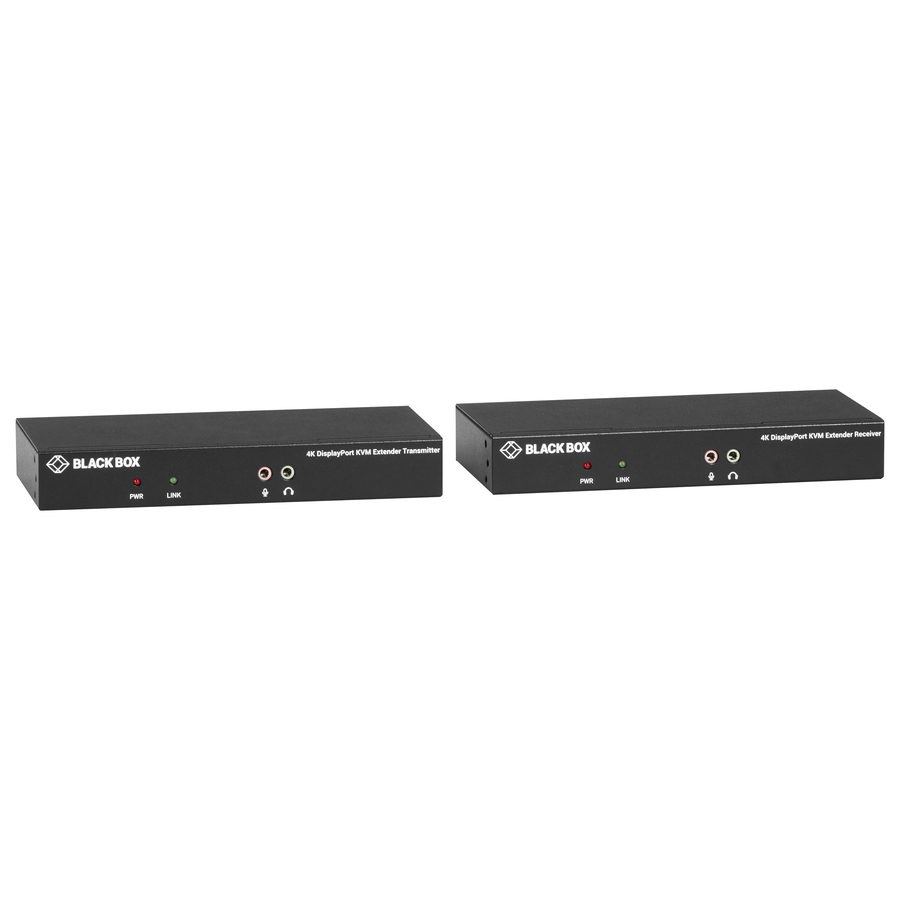

The KVX Single Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used, fiber type, and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant and backed by free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

  • Supports EDID pass-through
  • Local video port loopback for monitoring on transmitter (TX) unit
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
  • Remote access up to 100 meter
  • Supports displayport local video output
Brand
Brand Black Box Corporation
GPU / Graphics
Graphic Mode 4K
Power & Battery
Input Voltage 5 V DC
Networking & Connectivity
Ethernet Controller Manufacturer Black Box Corporation
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 5
DisplayPort
DisplayPort Yes
Audio Ports
Headphone/Microphone Combo Port Yes
Audio
Number of Microphone Array Elements Yes
Software & Licensing
Number of Local Users Supported 1
Size / Dimensions
Transmitter Weight (Approxima 13.28 oz
Form Factor Rack-mountable
Rack Height 1U
Receiver Width 3.27"
Receiver Height 0.83"
Receiver Depth 7.09"
Transmitter Depth 7.09"
Transmitter Weight (Approximate) 13.28 oz
Transmitter Height 0.83"
Transmitter Width 3.27"
Appearance
Color Not Specified
General Features
Maximum Operating Distance 32808.40 ft
Manufacturer Black Box Corporation
Device Type KVM Extender
Maximum Video Resolution (Content) 3840 x 2160
Number of Computers Supported 1
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
Brand Black Box Corporation
UPC/GTIN 822088142591
MPN KVXLCDPF-100
Unit Count 1 Units
Warranty 2 Year
Return Policy This product is eligible for 30-day returns. See our return policy for details.
Black Box KVXLCDPF-100 KVM Extender - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 5 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
