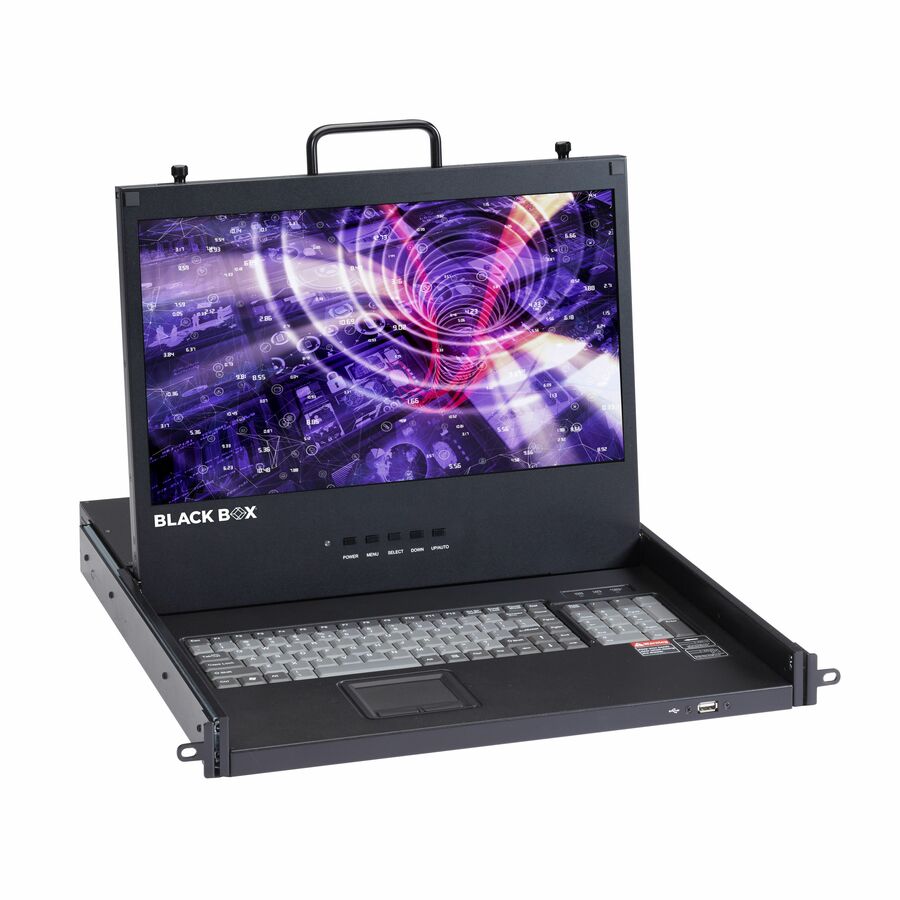

Need to control multiple servers in your equipment rack or network? The Black Box LCD Console Drawer is up to the task! The rack console drawer combines a 17.3" LED-backlit display, keyboard, and touchpad in only 1U of valuable rack space. With built-in USB, HDMI, DisplayPort, and VGA interfaces, it can support a variety of KVM switches for multiple server management. The rack console drawer also provides an extra local console for extended local operations. It's perfect for administering servers in data centers, server rooms, and labs.
State-of-the-Art LCD Panel
The rack console drawer features a power-saving LED backlit 17.3-inch LCD panel.
Flexible Interface
This flexible unit supports USB, VGA, DisplayPort, and HDMI connections to choose your video interface. And a front USB Hub supports USB HID (KB/MS) and storage devices.
High-Resolution
With a video resolution of up to 1920 x 1080 at 60 Hz, 1080p, you experience crisp, clear, viewing.
Embedded Power Supply Fuels the Unit
The drawer features a 12 V, 5.42-A integrated power supply.
Adjusts to Fit Your Cabinet or Rack
The drawer uses its adjustable mounting bracket to fit racks/cabinets 20.5 to 35.8 inches (52 to 91 cm) deep.
- Consists of a 17.3" power-saving LED-backlit display and touchpad
- Comes standard with VGA, DisplayPort, and HDMI video inputs and outputs
- Mounts in a 19-inch system rack (1U)
- Supports Full HD 1080p, 1920 x 1080 at 60 Hz
- Fits in a 20.5 to 35.8 inches (52 to 91 cm) deep rack/cabinet with an adjustable mounting bracket
- Front USB Hub supports USB HID (KB/MS) and storage devices
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Screen / Display | |
|---|---|
| Screen Size | 17.3" |
| Screen Resolution | 1920 x 1080 |
| Display Screen Type | LCD |
| Screen Mode | Full HD |
| Aspect Ratio | 16:9 |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100 VAC to 240 VAC |
| Input Voltage | 230 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Size / Dimensions | |
|---|---|
| Rack Height | 1U |
| General Features | |
|---|---|
| KVM Switch | Yes |
| Frequency | 60 Hz |
| Manufacturer | Black Box Corporation |
| Device Type | LCD Rack Console |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 2 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
