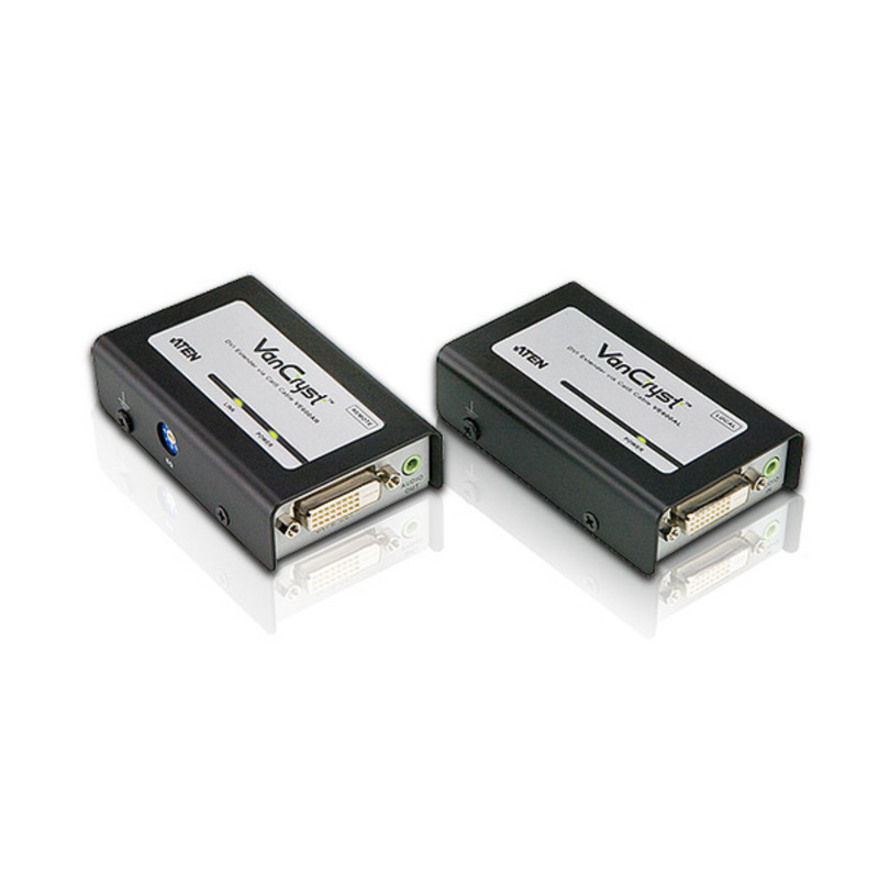

The VE600A extends DVI-D video and audio up to 200 ft at 1080i or 130 ft at 1920 x 1200 and 1080p.
The VE 600A uses two Cat5e cables to connect the local and remote units. It will pass video and audio with one cable [TDMS], but the second cable [DDC] must be used if your installation requires EDID information.
There are no drivers or other software to install, simply connect the units to your video source and destination.
- HDCP Compatible
- Supports widescreen formats
- Rack mountable
- Audio enabled
- Adjustable EQ compensation control
- Superior video quality - up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
- Long distance transmission - up to 60 m
- Uses Cat 5e cable to connect the local and remote units
- Extends the distance between DVI source and DVI display device
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1 lb |
| Transmitter Height | 1" |
| Transmitter Width | 2.20" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Maximum Operating Distance | 200 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 3 |
| Maximum Video Resolution (Content) | 1920 x 1200 |
| Video Ports | |
|---|---|
| Number of DVI Inputs | 1 |
| DVI In | Yes |
| DVI Out | Yes |
| Number of DVI Outputs | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792003004 |
| MPN | VE600A |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
ATEN Video Extender - 1 Input Device - 3 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e
