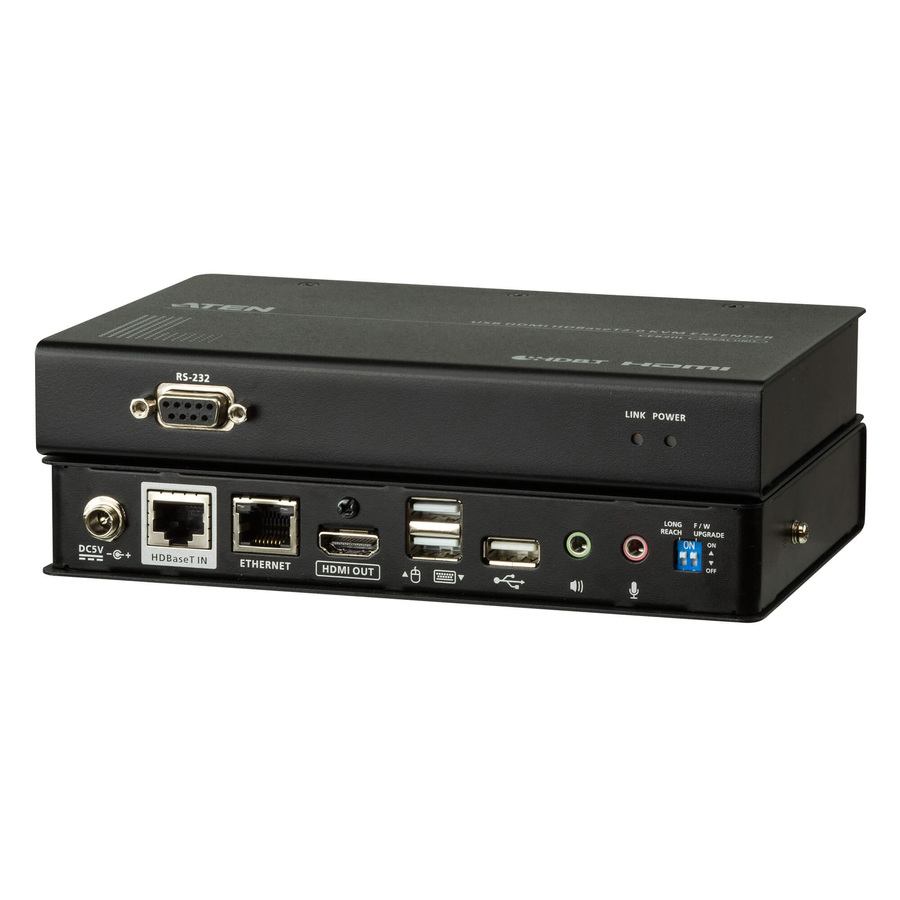

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
- HDBaseT™ Long-Reach mode up to 1080P @ 150 m
- Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap
- Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- EDID Buffer for smooth power-up and the highest quality display
- Status detection and LED indication for HDBaseT™ signal transmission on remote unit
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Supports HDBaseT™ 2.0 technology
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Ethernet Controller Manufacturer | ATEN Technology, Inc |
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Port | Yes |
| Audio | |
|---|---|
| Number of Microphone Array Elements | Yes |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.43 lb |
| Form Factor | Rack-mountable |
| Receiver Width | 4.80" |
| Receiver Weight (Approximate) | 1.39 lb |
| Receiver Height | 1.13" |
| Receiver Depth | 7.17" |
| Transmitter Depth | 7.17" |
| Transmitter Weight (Approximate) | 1.43 lb |
| Transmitter Height | 1.13" |
| Transmitter Width | 4.80" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Maximum Operating Distance | 492.13 ft |
| Manufacturer | ATEN Technology, Inc |
| Maximum Video Resolution (Content) | 4096 x 2160 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792008245 |
| MPN | CE820 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant - 492.13 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable
