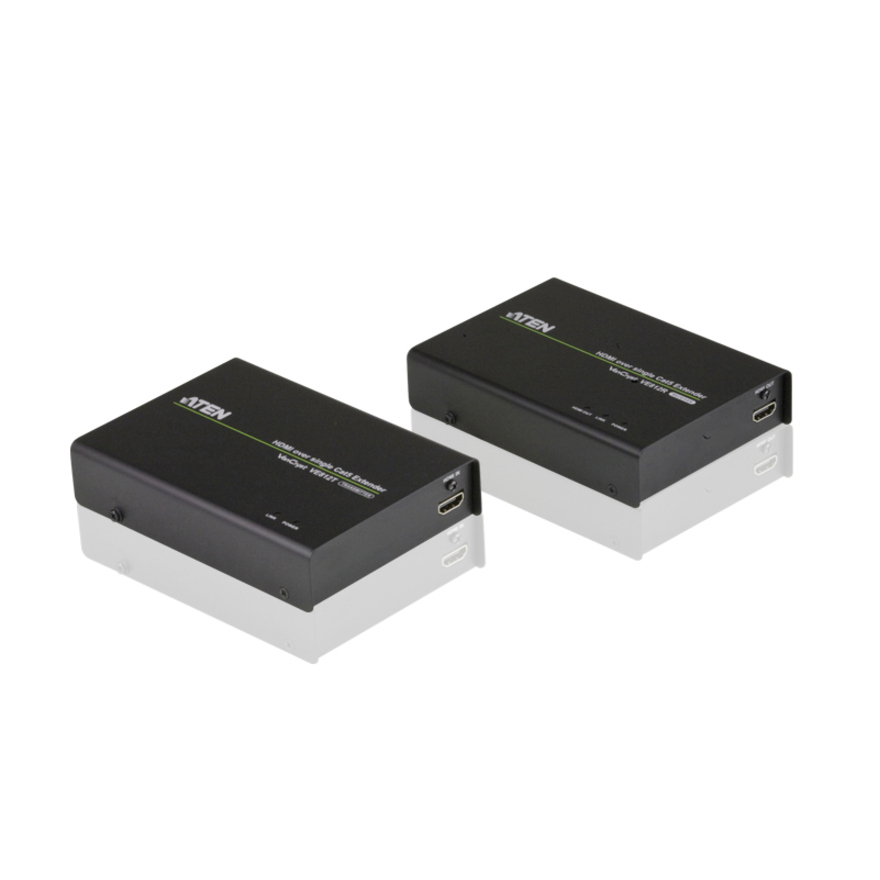

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display. The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
- Supports Dolby True HD and DTS HD Master Audio
- Supports up to 340MHz bandwidth for high performance video
- Long distance transmission - up to 100m
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 14.11 oz |
| Transmitter Depth | 5.58" |
| Transmitter Weight (Approximate) | 14.11 oz |
| Transmitter Height | 1.18" |
| Transmitter Width | 4.06" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Video Resolution (Content) | 4096 x 2160 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792004438 |
| MPN | VE812 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
ATEN HDMI over Single Cat 5 Extender-TAA Compliant - 1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4096 x 2160
