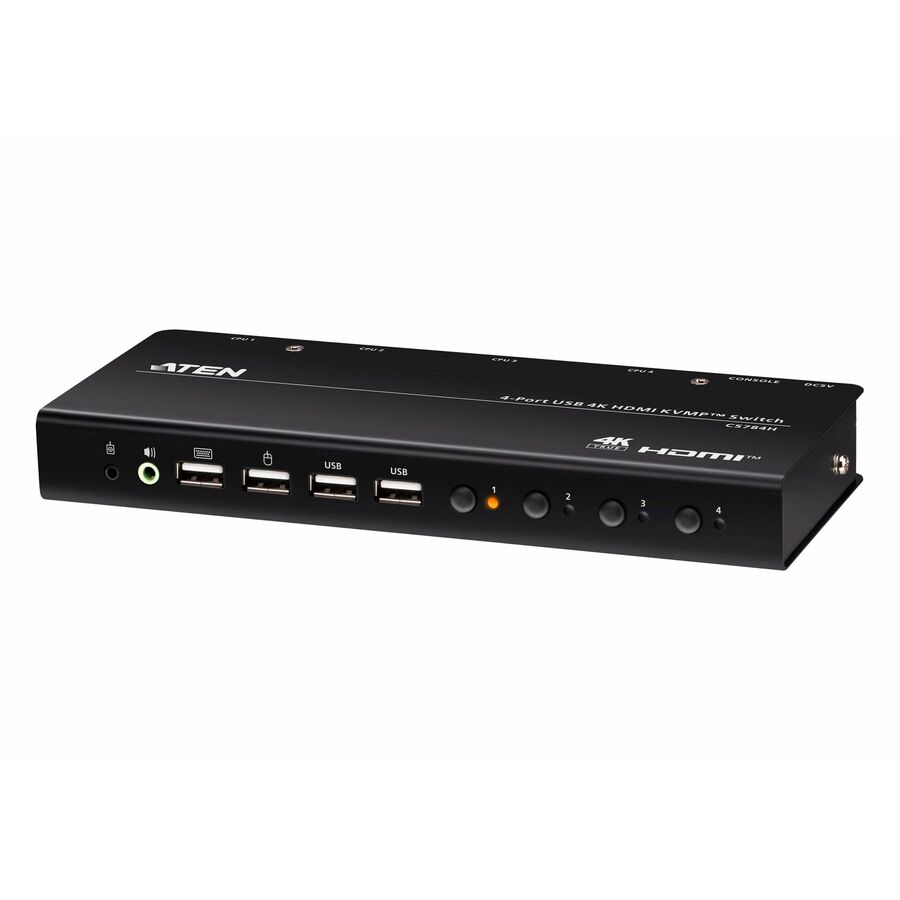

The CS784H is a 4-port desktop KVM switch designed for those who demand a streamlined workflow and uncompromising visual quality across multiple systems. It enables fast, reliable switching between four HDMI computers with up to 4K DCI resolution, while sharing a single keyboard, monitor, mouse, audio output, and USB peripherals through one KVM console. With multiple switching methods - including pushbuttons, hotkeys, and a remote port selector - the CS784H is the perfect companion for desktop setups in offices, content creation, remote work, design, and more.
Space-Efficient Desktop Setup
The CS784H simplifies control of up to four HDMI computer systems by sharing a single keyboard, monitor, and mouse from one KVM console, delivering a clutter-free and organized desktop workspace.
Superior Visual Clarity
The KVM switch is designed to deliver exceptional visual performance, supporting 1080p@60, 4K@60, and up to 5120�1440@60.
USB Peripheral Sharing
Media and data sharing between computers is fast and effortless via plug-n-play connection (e.g. hard drive, flash drive, printer, etc) to the USB ports on the KVM switch.
Flexible Port Selection
Port switching is quick and flexible via pushbuttons, hotkeys, or the remote port selector - whichever best fits your workflow.
All Essentials Packed. No Extras Needed.
Everything you need is included - 4 HDMI cables, 2 USB 2.0 A to B cables, 1 power adapter, and 1 remote port selector (wired switch button) - for instant setup.
Applications
The CS784H enables centralized control of up to 4 HDMI computers via one keyboard, mouse, and monitor, delivering a tidy and efficient desktop workspace where multitasking is streamlined and cable clutter is minimized.
- Single USB keyboard and mouse control up to 4 PCs, simplifying cables and reducing the cost of multi-computer setups
- Superior video quality - up to 4096 x 2160 @ 60 Hz, 5120 x 1440 @ 60Hz
- Supports Video DynaSync™ - exclusive ATEN technology ensures optimal resolution and consistent window layout during port switching for smooth multi-system workflows
- Computer selection via remote port selector, hotkeys, and USB mouse
- Multiplatform support - Windows, Mac, and Linux
- USB peripheral sharing
- All HDMI / USB cables and power adapter included - for plug-and-play setup and hassle-free installation, no extra purchases needed
- Power-on detection automatically switches to the next active computer
- Supports most gaming / multimedia keyboards and multifunction mice with emulation or bypass
- Auto-scan function allows continuous monitoring of connected systems
- Plug and play - no software installation or configuration required
- Supports hot-plugging
- Firmware upgradeable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 5K |
| Power & Battery | |
|---|---|
| Input Voltage Range | 5VDC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 8 |
| USB Standard | USB 2.0 |
| USB 2.0 | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 5 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 5120 x 1440 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 4 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
