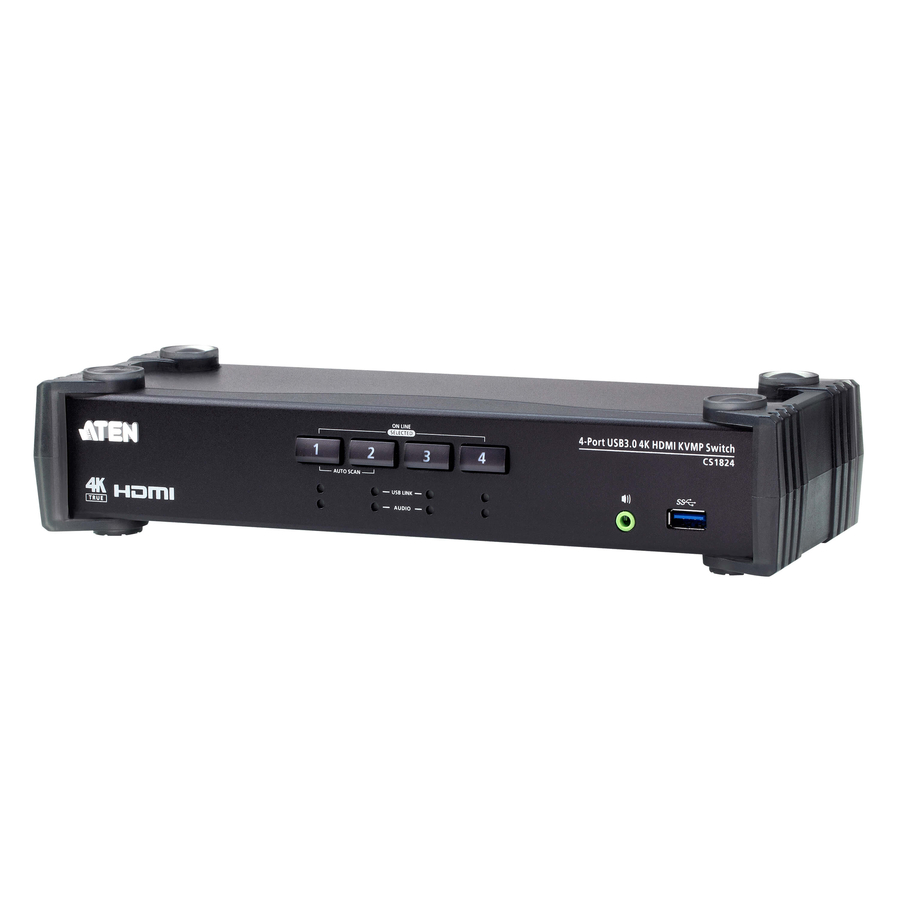

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology - Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
- Supports HD Audio
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- ATEN default EDID mode - smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer Modes - mixes up to two audio sources as audio output
- Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
| Brand | |
|---|---|
| Brand | ATEN Technology |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 7 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 5 |
| Software & Licensing | |
|---|---|
| Number of Local Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Maximum Height Adjustment (Above) | 2.2" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Maximum Video Resolution (Content) | 4096 x 2160 |
| Number of Computers Supported | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792011177 |
| MPN | CS1824 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
