A WORKSTATION WONDERLAND

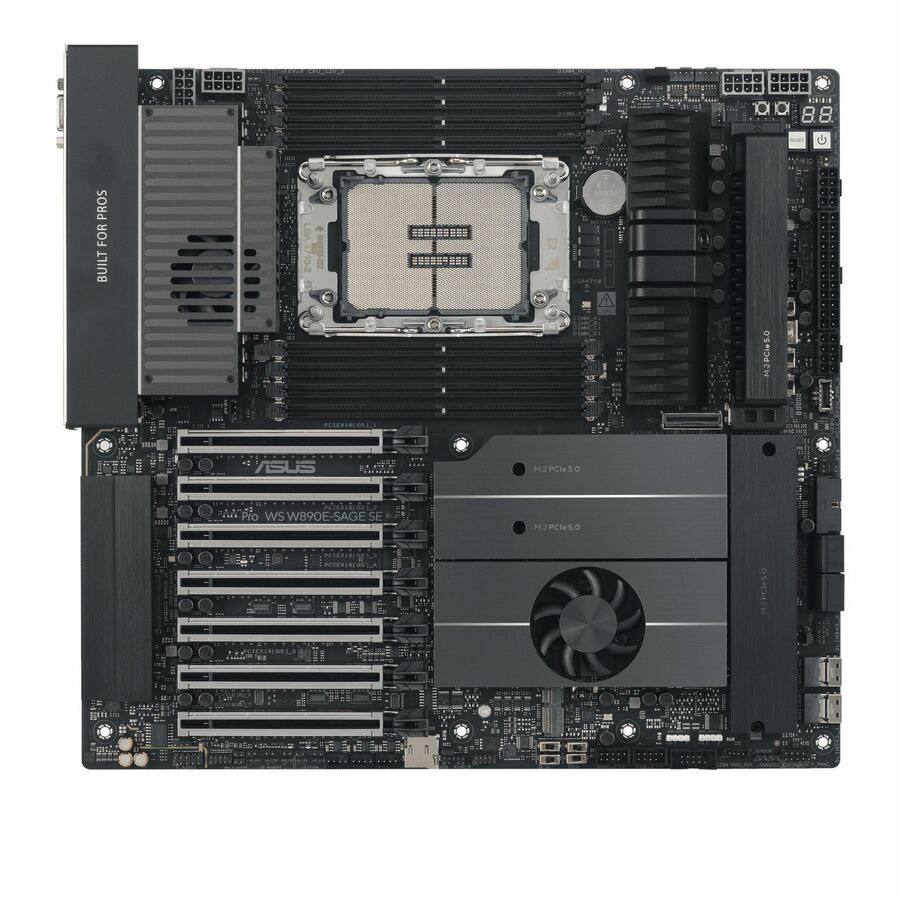

The Pro WS W890E-SAGE SE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890E-SAGE SE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890E-SAGE SE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
ULTRAFAST CONNECTIVITY | Multi-GPU Support
The Pro WS W890E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.
ULTRAFAST CONNECTIVITY | Ultrafast Networking | Intel® E610-XAT2 dual 10 Gb Ethernet
Featuring dual onboard 10 Gb LAN ports powered by the cutting-edge Intel® E610-XAT2 Ethernet controller, the Pro WS W890E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.
1 Gb Ethernet Dedicated to BMC
The Pro WS W890E-SAGE SE features a 1 Gb Ethernet port to provide fast and reliable data transfers to the onboard baseboard management controller for remote management functions.
- Intel LGA4710-2 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 16+2+2+1+2 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, SlimSAS, MCIO
- Ready for Advanced AI PC:
- Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel
- ®
- LGA4710-2 socket supports up to 86-core CPUs:
- Ready for Intel®Xeon®600 Processors for Workstation.
- Ultrafast connectivity:
- Seven PCIe®5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4®40Gbps Type-C®, and SlimSAS NVMe support.
- CPU and memory overclocking:
- Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design:
- 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.
- Server-grade IPM
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4710-2 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Form Factor | RDIMM |
| Number of Memory Slots | 8 |
| Error Checking | ECC |
| Maximum Memory Supported | 4 TB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 6 |
| Total Number of Onboard USB P | 6 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 8 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | SSI EEB |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | W890 |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Brand Compatibility | Intel |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 8 |
| Total Number of PCI Express S | 8 |
| Total Number of Expansion Slots | 8 |
| PCI Express Standard | PCI Express 4.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 4 |
| Number of SATA Interfaces | 4 |
