Easy modification, maximum possibilities

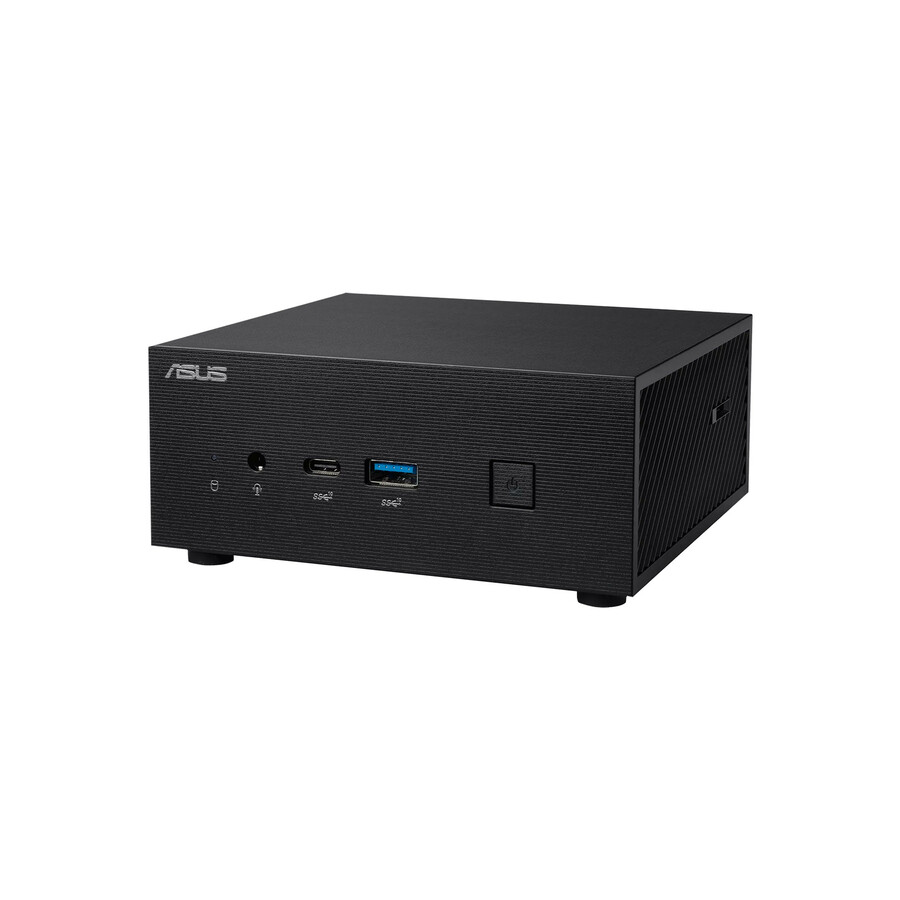

ASUS Mini PC PN63-S1 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Generation Intel® Core™ processors and support for high-speed 3200MHz DDR4 memory, Mini PC PN63-S1 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6E networking ensures stable, high-speed data transfers, even in crowded networking environments.
Performance
ASUS Mini PC PN63-S1 is no lightweight when it comes to performance. It harnesses the power of the latest 11th Gen Intel® Core™ processors combined with plenty of fast RAM, plus Intel® Iris® Xe and multiple storage combinations. There's also an ultrafast PCIe® SSD to ensure fast boot times and rapid app loads.
Flexibility | Upgrade-friendly
A convenient sliding chassis design lets you add or upgrade 2 x M.2 Slot & 1 x 2.5" HDD, support PCIe G4x4, PCIe G3x4, or memory in two easy steps using just a screwdriver. A bare-bones* option is also available, giving you maximum flexibility to customize your system.
Performance | Small and powerful
11th Gen Intel Core processors deliver outstanding performance and smooth computing power, while integrated Intel Iris® Xe graphics enhance fast-moving visuals to enable Mini PC PN63-S1 to tackle intensive business operation with ease.
Performance | Improved Cooling
Mini PC PN63-S1 has unique cooling features, including a large fan to boost airflow, a new thermal module with a heat pipe for better heat dissipation, and an aluminum heatsink for more efficient conductivity. In addition, the exclusive ASUS Anti-Dust Self-Cleaning System effectively removes dust to maintain a cleaner heatsink and prolong the lifecycle of the product. A cleaner system also leads to quieter fan performance.
Triple storage design
ASUS Mini PC PN63-S1 is able to accommodate two M.2 SSDs and a 2.5-inch HDD, support PCIe G4x4, PCIe G3x4 letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.
Design | Modern, space-saving design
With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN63-S1 easily blends into home, office and retail environments. Compact and lightweight at 120mm x 130mm x 58mm with a 0.9-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.
Connectivity | High speed data transmission
ASUS Mini PC PN63-S1 provides comprehensive connectivity with multiple ports, including a front-mounted USB 3.1 Gen2 Type-C port and a configurable port to support legacy devices, additional displays or multiple network connections.
Hyper-fast 2.5Gbps Networking
PN63-S1 next-generation 2.5GBase-T (2.5G) networking technology to deliver speeds of up to 2.5Gbps -2.5X faster than standard gigabit Ethernet. It enables ultra-fast 2.5Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks in your office or at home.
- Core i5 processor ensures timely and efficient performance for everyday computing needs
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Windows 11 Pro OS support includes creative and productive tools you need for smooth workflows
- With NVMe interface, experience high-speed data transfer and robust reliability for optimized system performance
- Mini PC form factor simplifies usage and boosts efficiency, making setup and operation more convenient
- 11th Gen processor generation offers more threads and higher clocks for faster, optimized system performance
- Can connect up to 4 USB peripherals for versatile and productive device integration
- 2.5 Gigabit Ethernet Ethernet technology offers reliable wired connectivity for seamless communication and network stability
- Quad-core (4 Core) processor core efficiently handles data for quicker information transfer and smooth performance
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal per
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Type | Core i5 |
| Processor Model | i5-1135G7 |
| Number of Processors Installed | 1 |
| 64-bit Processing | Yes |
| Processor Generation | 11th Gen |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.40 GHz |
| Maximum Turbo Speed | 4.20 GHz |
| Processor Socket | Socket BGA-1449 |
| Thermal Design Power | 90 W |
| GPU / Graphics | |
|---|---|
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Inter | Serial ATA III |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 2 Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI (Rear) | Yes |
| DisplayPort | |
|---|---|
| Mini DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini PC |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 1 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 1 |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
