8th/9th Generation Intel® Core i7/i5/i3 LGA 1151 Micro-ATX motherboard with H310 chipset, two U-DIMM slots, DVI-D & D-sub, M.2 slot, PCIe x16 and four SATA ports
- Supports Intel®9th/8th Gen Core™ processors (LGA1151) with the Intel H310 chipset
- Two U-DIMM slots support up to 32GB DDR4 2400/2133 MHz SDRAM
- Supports dual display configurations with multiple interfaces, including DVI-D & D-sub
- Advanced I/O and connectivity features
- Seven years of longevity with extended product life cycles
- Wide temperature range endurance: 0-60°C

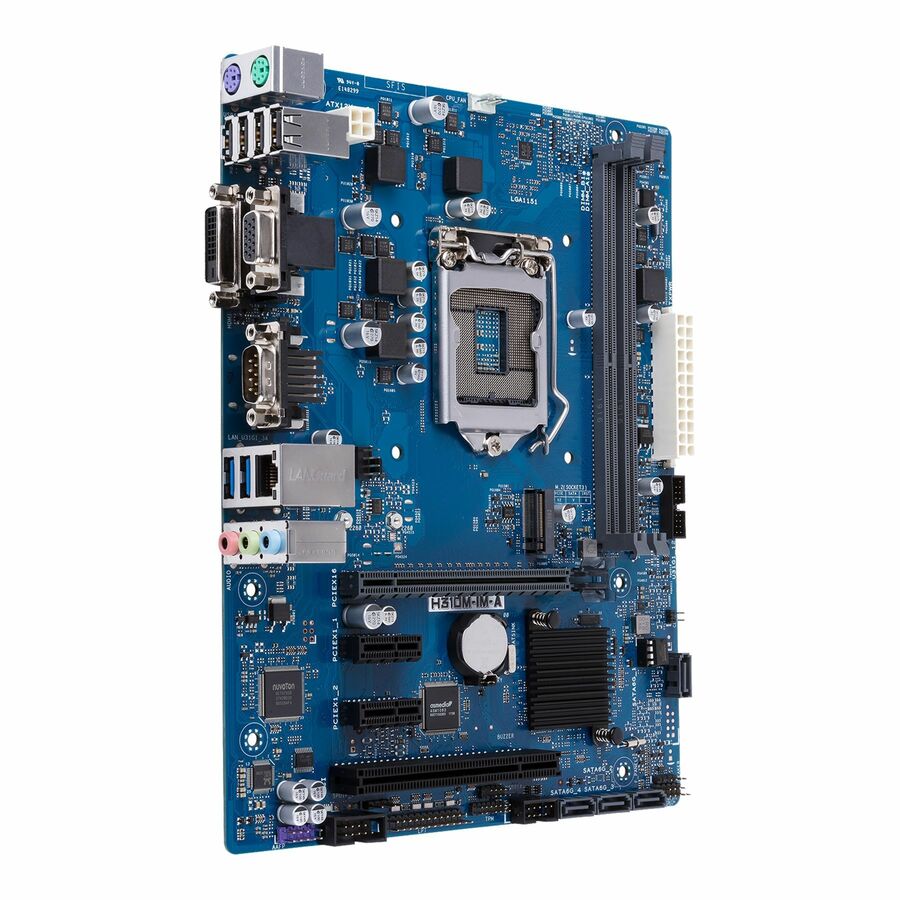

ASUS H310M-IM-A is a Micro-ATX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, COM ports, four SATA ports and two M.2 sockets as well as rich expandability with a PCIe x16 slot. ASUS H310M-IM-A is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supports Intel Intel UHD Graphics 630/610 controller for effective graphics and amazing visual quality
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Industrial Motherboard
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Celeron |
| Total Processor Supported | 1 |
| Processor Generation Supported | 8th |
| Processor Socket | Socket H4 LGA-1151 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 630/610 |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2666 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 2 |
| Number of Pins | 288-pin |
| Maximum Memory Supported | 32 GB |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 2 |
| Total Number of Onboard USB P | 4 |
| Number of Onboard USB 2.0 Por | 2 |
| Total Number of USB Ports | 6 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | H310 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Brand Compatibility | Intel |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 4 |
| Number of PCI Express x1 Slots | 2 |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard | PCI Express 2.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| DVI | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 4 |
