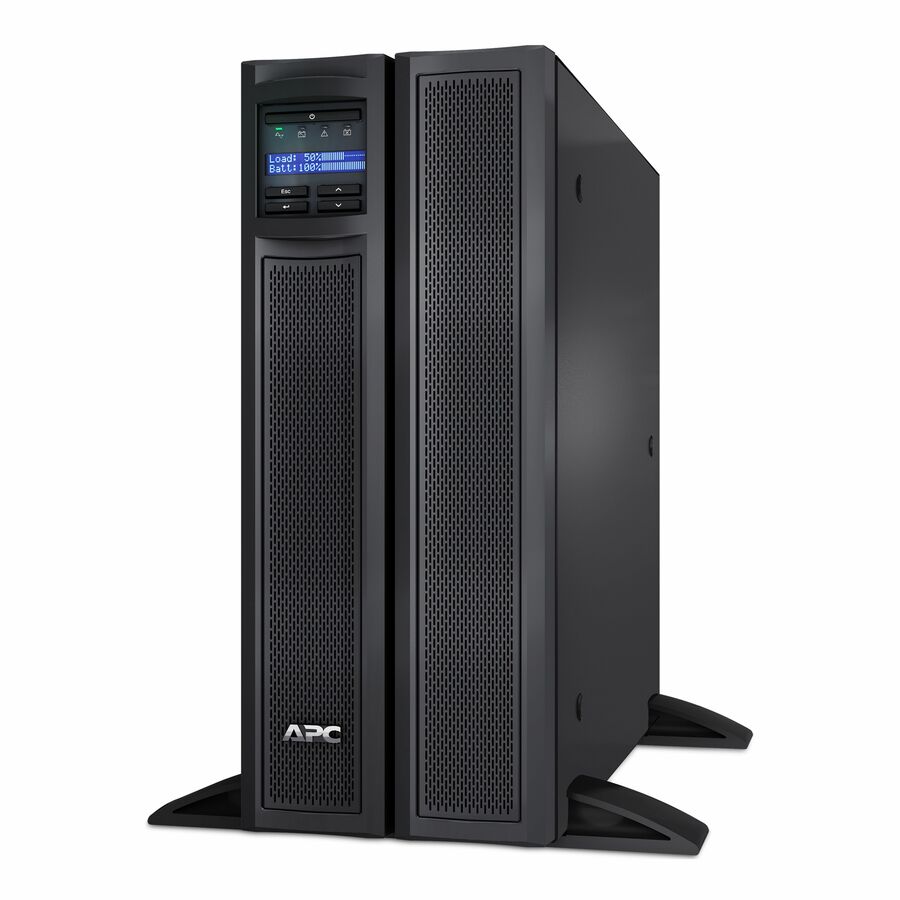

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- SmartSlot-Customize UPS capabilities with management cards.
- Rack/Tower convertible-Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Automatic restart of loads after UPS shutdown-Automatically starts up the connected equipment upon the return of utility power.
- Scalable runtime-Allows additional run time to be quickly added as needed.
- Outlet group control-Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations for UPSs with switched outlet groups.
- Sequenced network shutdown and reboot-Customize network shutdown and reboot sequence of connected servers and UPSs.
- Load shedding-Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime UPSs with switched outlet groups.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- UPS recognizes when external battery packs ar
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Spill-proof |
| Emergency Power OFF | Yes |
| Phase | Single Phase |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-20P |
| Plug/Connector Type | NEMA 5-20P |
| Number of Battery & Surge Outlets | 10 |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 1920 VA |
| Backup/Run Time (Full Load) | 11 Minute |
| Backup/Run Time (Half Load) | 28 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 4U |
| Mounting Preference | Lower |
| Maximum Height Adjustment (Above) | 17.01" |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| California Proposition 65 War | which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov , WARNING: This product can expose you to chemicals including: Lead and lead compounds |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 7/18/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Product Contributes Saved Avo | No |
| Minimum Percentage of Recycle | 0 |
| Packaging Contains Recycled C | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304292586 |
| MPN | SMX2000LV |
| Unit Count | 1 Units |
| Warranty |
3 Year
UPS: 36 month(s)|Battery: 24 month(s)
|
