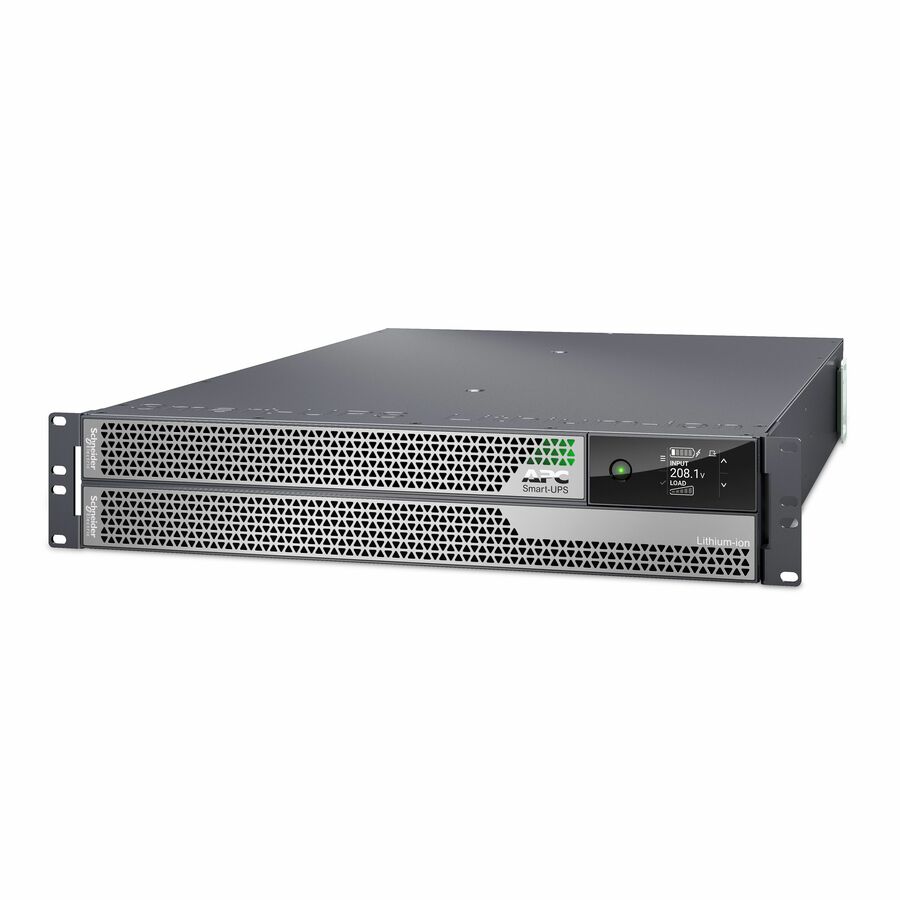

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
- 5kVA/4.9kW double-conversion on-line pure sine wave 2U rackmount UPS
- Add up to 10 external battery packs (SRTL180RM2UBP) for extended runtime
- Rack/Tower convertible (rail kit included)
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- 1-Year Secure Network Management Card subscription included
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 70 Hz |
| EPO Port | Yes |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Battery Life | 10 Year |
| Battery Energy | 2592 kJ |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Load Capacity (Watt) | 5000 W |
| Load Capacity (VA) | 4900 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 180 V DC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1260 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Mounting Location | Front |
| Rack Height | 2U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 306.85 W |
| Cables | |
|---|---|
| Cord Length | 10.01 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 5ee38369-4dfb-4636-ab65-b08aa3242891 |
| Product Contributes Saved Avo | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
