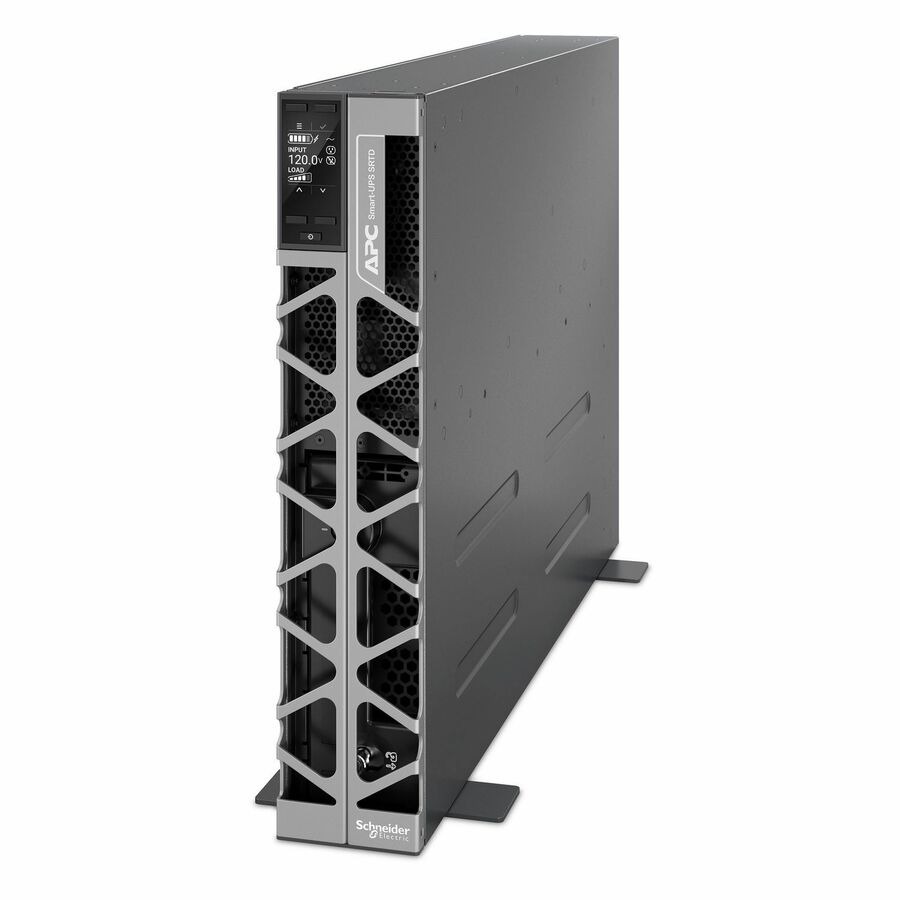

The SRTD2K2R2N-LA brings next gen power protection with the revolutionary multi-chemsitry battery support engineered for future proofing your UPS systems. This multi-chemistry UPS supports current VRLA technology with built-in upgrade paths to lithium-ion and emerging chemistries, ensuring long-term investment protection. It comes with embedded network management card for remote monitoring and management capabilities. Featuring 11 total outlets versus 9 on standard models, this unit maximizes device connectivity while maintaining the compact 2U footprint. This unit offers best-in-class efficiency at 94% that helps reduce power and heat loss for a better total cost of ownership. The embedded network card enable EcoStruxure IT that offers secure cloud connectivity, predictive analytics, and seamless integration with virtualization platforms. This unit is rackmount/tower convertible which makes it easy to deploy in different kinds of applications. The unit also supports upto 10 external battery packs for extended runtime. This UPS is truly sustainable with reduced plastic usage and a carbon footprint that is 25% less than its predecessor.
- Multi-chemistry platform: supports VRLA, lithium-ion or any future emerging batteries in the same chassis
- 2.2kVA/1.8kW capacity in a compact 2U design
- 94% efficiency reduces energy consumption and improves total cost of ownership
- 11 outlets total: (10) 5-20R, (1) L5-20R
- Rack/tower convertible with gravity sensing display
- External battery expansion capable to further increase runtime - up to 10 external battery packs
- Hot-swappable battery technology for maintenance on the go
- Embedded network card for remote monitoring and management
- EcoStruxure IT support for 24/7 secure remote access
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Built-in Battery | Yes |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 70 Hz |
| Surge Suppression | Yes |
| EPO Port | Yes |
| Receptacle Detail | 10 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 108 V AC - 150 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 16 A |
| Efficiency Detail | 94% (AC Mode) |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 2200 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 72 V DC |
| Backup/Run Time (Full Load) | 8.43 Minute |
| Backup/Run Time (Half Load) | 22.60 Minute |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 405 J |
| Networking & Connectivity | |
|---|---|
| Network Management | Network Management Card 3 (NMC3) |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Compact |
| Mounting Location | Front/Horizontal/Vertical |
| Rack Height | 2U |
| Mounting Preference | Lower |
| Appearance | |
|---|---|
| Color | Silver Gray |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Environmental Sensors | Temperature Sensor |
| Manufacturer | Schneider Electric SA |
| Thermal Dissipation | 131.88 W |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Cables | |
|---|---|
| Cord Length | 5.91 ft |
| Compliance & Certification | |
|---|---|
| Reach Compliance Date | 2/1/2026 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Sound Emission (A-Weighted) | 52 dB(A) |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304765912 |
| MPN | SRTD2K2R2N-LA |
| Unit Count | 1 Units |
| Warranty |
36 Month
UPS: 36 month(s)
Battery: 36 month(s) |
