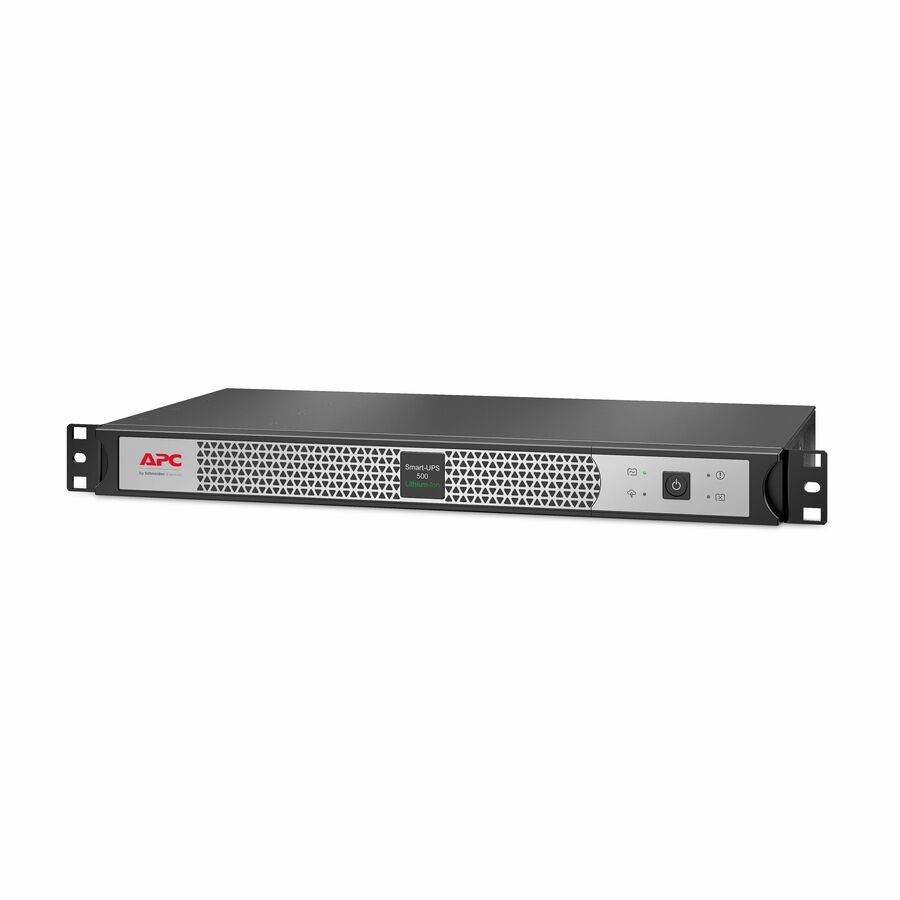

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Peace of mind with a 5-year warranty on UPS and battery
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Short depth UPS provides extra space for cable management
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 4 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 63 Hz |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| EPO Port | Yes |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15P |
| Plug/Connector Type | NEMA 5-15P |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 92 V AC - 139 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 400 W |
| Load Capacity (VA) | 500 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SmartConnect |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Configurable Delay |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | c151e0e4-d5aa-4595-a297-c593b8808426 |
| Product Contributes Saved Avo | Yes |
| Packaging Contains Recycled C | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 10% - 90% |
| Storage Relative Humidity | 10% - 90% |
| Maximum Operating Elevation | 6561 ft |
| Maximum Storage Elevation | 49212 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304344551 |
| MPN | SCL500RM1UC |
| Unit Count | 1 Units |
| Warranty | 5 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
| Customer Reviews | 3.7 (11) |
