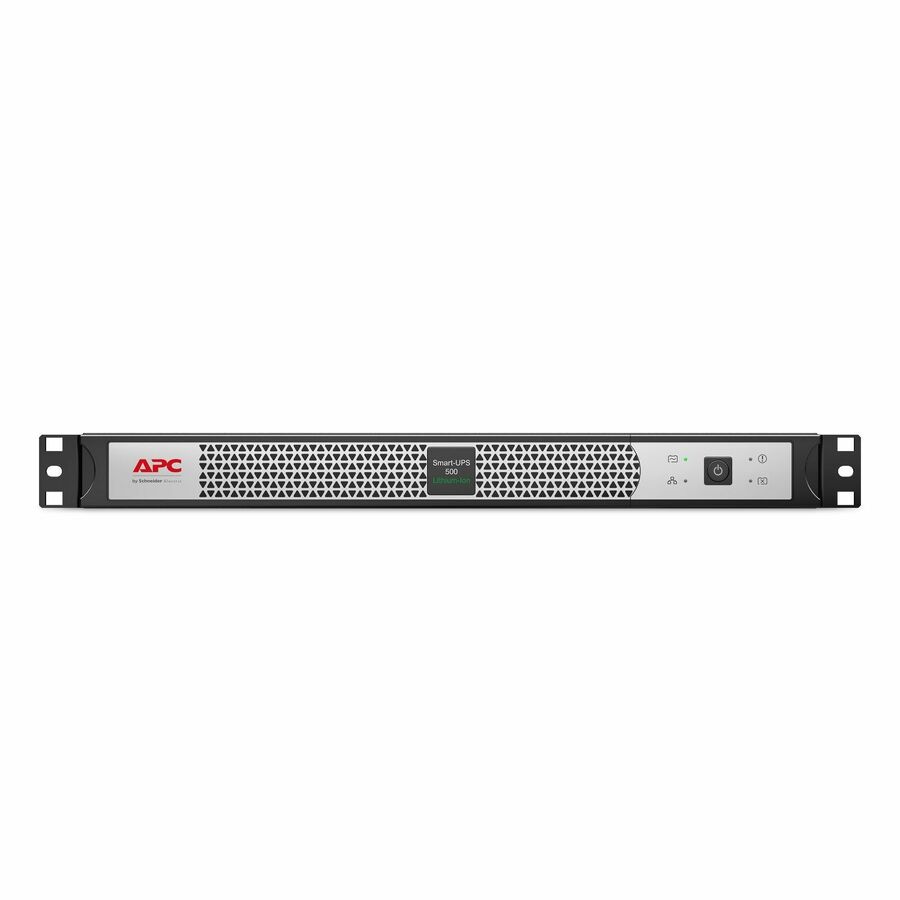

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Peace of mind with a 5-year warranty on UPS and battery
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- 1-Year Secure Network Management Card subscription included
- Short depth UPS provides extra space for cable management
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 4 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 63 Hz |
| Overload Protection | Yes |
| AVR | Yes |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15P |
| Plug/Connector Type | NEMA 5-15P |
| Battery Energy | 108 kJ |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 400 W |
| Load Capacity (VA) | 500 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Transfer Time | 6 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Configurable Delay |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | c151e0e4-d5aa-4595-a297-c593b8808426 |
| Product Contributes Saved Avo | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 6561 ft |
| Maximum Storage Elevation | 49212 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
