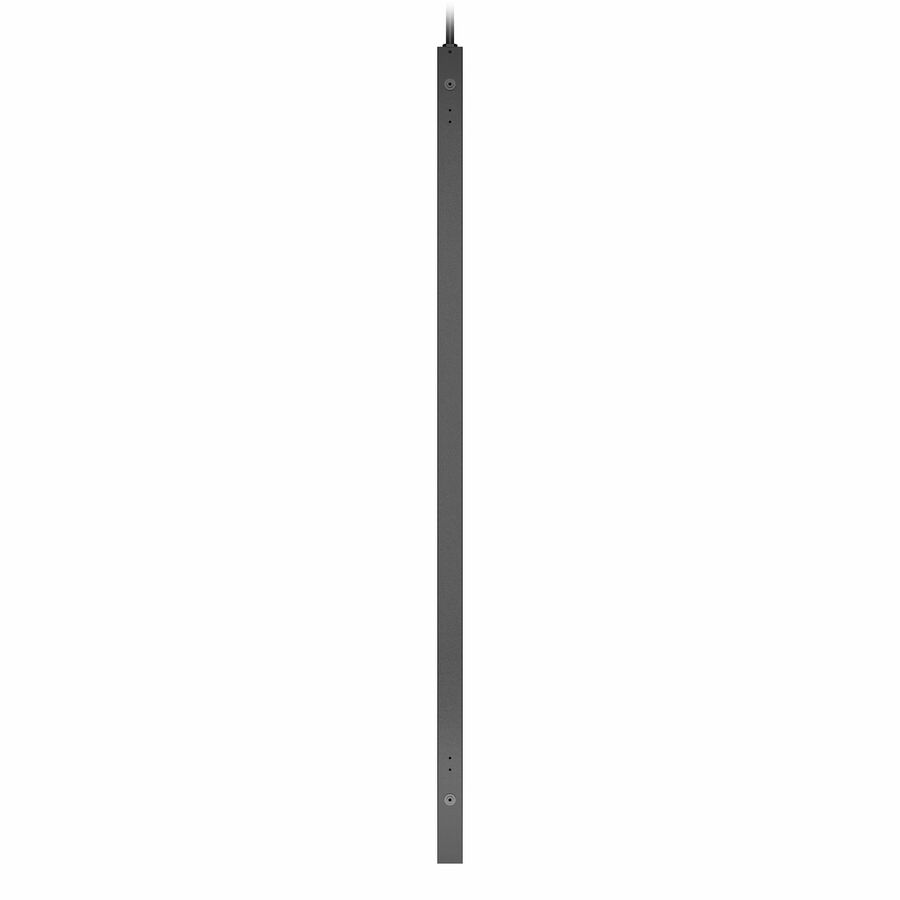

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 36 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes a 3-foot power cord with a NEMA L21-20P plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
- Includes toolless mounting kit for quick setup
- Supports up to 5.7 kW, 208V power distribution
- Vertical mounting to save rack space
- Features 36 C13 and 6 C19 outlets for extensive power distribution
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | NEMA L21-20P |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5700 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Keyboard/Keypad Weight (Approximate) | 12.02 lb |
| Mounting Preference | No Preference |
| Maximum Height Adjustment (Above) | 70" |
| Appearance | |
|---|---|
| Color | Black |
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 2.95 ft |
| Compliance & Certification | |
|---|---|
| Lead Free | Yes |
| Product Take Back Program | No |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | Yes |
| Reach Compliance Date | 2/1/2026 |
| Single-use Plastic (SUP) Free | Yes |
| Sustainable Packaging | No |
| Halogen Content Performance | Product contains halogen above thresholds |
| Product Contributes Saved Avo | No |
| Minimum Percentage of Recycle | 0 |
| Packaging Contains Recycled C | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Parts Warranty/Labor | 2 Year |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304207948 |
| MPN | AP7564 |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
