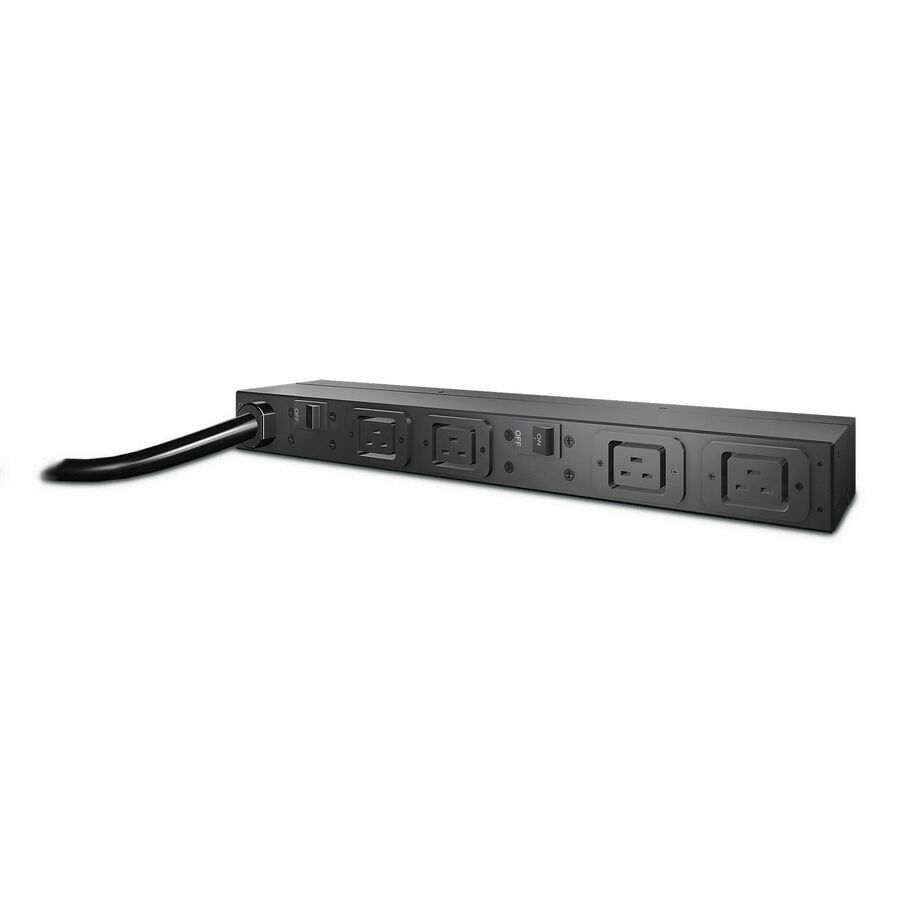

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 4 IEC 60320 C19 outlets, providing connections for high-power IT equipment. It includes a 10-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
- Easy installation with toolless mounting capabilities
- Horizontal mounting to fit various rack configurations
- Supports up to 30A, 208V power distribution
- Equipped with 4 C19 outlets for versatile power connections
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Circuit Breaker | Yes |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 6240 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Color | Black |
| Placement | Rear |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 9.84 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Halogen Content Performance | Product contains halogen above thresholds |
| Product Contributes Saved Avo | No |
| Minimum Percentage of Recycle | 0 |
| Packaging Contains Recycled C | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Parts Warranty/Labor | 2 Year |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304213086 |
| MPN | AP9570 |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
| Customer Reviews | 5.0 (2) |
