Unleash the true potential of your computer
Unchain your computer and work without compromise with the FlashDock 5.
Expanded Visual Workspace
Connect up to 3x Ultra High Definition displays
Lightning Speed
80Gbps bandwidth for lightning-fast transfers with Thunderbolt™ 5
Extra Storage
Built in support for solid state drives up to a massive 8TB
One Cable - 13 Ports
No fuss connectivity for peripherals and accessories
140W Charging
Charge even the most power-hungry laptops at the fastest speeds possible
Certified Reliability
Certified by Intel for compatibility with PC, Mac and ChromeOS
Triple 4K / Dual 8K Display
FlashDock 5 supports up to two 8K, or three 4K displays, enabling greater productivity and the finest visual experience possible

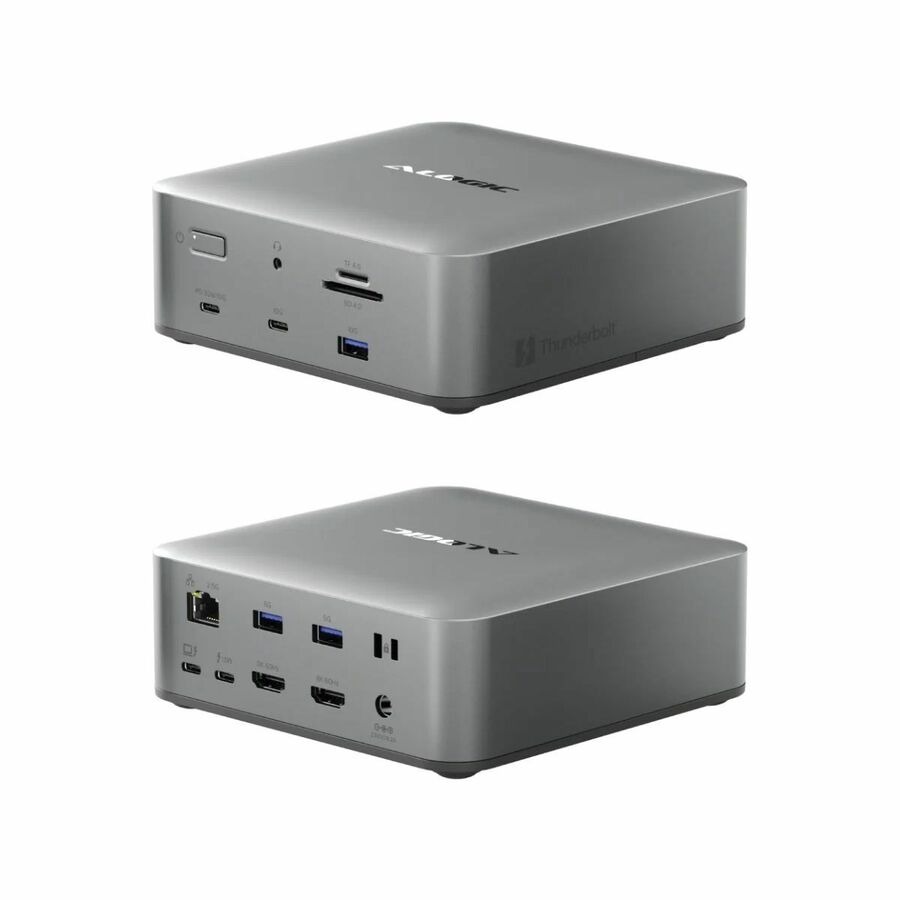

Connect All The Things
FlashDock 5 provides an abundance of ports to expand the capabilities of your computer. Connect displays, network and audio devices. Add USB and Thunderbolt™ peripherals. Move media files between memory cards. The possibilities are endless.
Lightning Speed
FlashDock 5 harnesses the power of Thunderbolt™ 5 to do everything faster.
FlashDock 5 offers twice the speed of previous Thunderbolt™ devices and up to 16x the speed of USB 3.0 devices to get more done in less time. Bandwidth Boost technology dynamically pushes transfer speeds even further to a staggering 120Gbps when needed.
Up to 8TB Storage Expansion
Never run short of space for files and media. Effortlessly add storage to your PC by installing an optional SSD (not included). Simply slide the bottom cover off the FlashDock to reveal an M.2 NVMe® PCIe® Gen 4x4 SSD slot, supporting blistering read and write speeds up to 6000MB/s.
140W Charging
With a 180W power adapter featuring GaN technology for powerful and efficient operation, FlashDock 5 can charge even the power hungriest laptops with up to 140W of power.
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- Charging capability puts less strain on the charging port to allow prolonged usability
- Thunderbolt 5 host interface Offers a more refined structure and safer to use connectivity
- Computer device supported for your convenience and better usability
- 15 GB/s maximum data transfer rate for fast, dependable data transfer with added productivity
- Power Delivery Pass-through feature for maximum usage efficiency and convenience
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Power Adapter power source type for your docking station provides optimal performance with maximum usability
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- 5 USB ports allows quick transmission of data at a higher rate for your convenience
| Brand | |
|---|---|
| Brand | Alogic |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 4K @ 144Hz |
| Supported Resolutions | 6144 x 3160 |
| Power & Battery | |
|---|---|
| Power Supply Input | 100-240VAC |
| Charging Capability | Yes |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 2 |
| Number of USB 3.2 Gen 2 Type- | 1 |
| USB Power Delivery | 140W |
| Total Number of USB Ports | 5 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Thunderbolt Ports | |
|---|---|
| Number of Thunderbolt 5 Ports | 2 |
| Thunderbolt 5 | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Port | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | TransFlash |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 15 GB/s |
| Frequency | 60 Hz |
| Manufacturer | Alogic |
| Brand Compatibility | Apple |
| Misc Ports | |
|---|---|
| Total Number of Ports | 13 |
| Host Interface | Thunderbolt 5 |
| Cables | |
|---|---|
| Cable Length | 2.62 ft |
| Brand | Alogic |
| MPN | TB5D3-SSD |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
