Professional Performance
Designed for when performance, reliability and value count, Elements series cables are budget friendly while providing professional performance for home or commercial use.
These cables are used to connect DisplayPort sources to VGA displays. They support VGA resolutions up to the maximum of 1920 x 1200.
Engineered with low profile connectors and high flexibility, low bend radius cable, these cables are ideal for use where space is limited such as behind displays and in equipment racks.
Convenient Connectivity
These cables are great for making use of your older displays which still work but don't feature digital inputs. Instead of consigning them to the scrap heap, keep them working with newer computers using these cables.
Reliability You Can Count On
Engineered with professional applications in mind, these cables utilise highly flexible 32AWG cable for reliable performance and ease of installation in home or business uses.
Years of feedback about other companies' DisplayPort cables failing in the field has led us to develop our own unique connector construction to ensure long lasting reliability.
Our robust ABS low profile DisplayPort connectors provide a comfortable grip and easy insertion while standing up to use in high traffic environments. The connectors are latching, meaning they can't fall out once connected.
With hundreds of thousands of our cables installed in professional environments, this range draws upon our vast experience providing products that last the test of time in the most demanding applications.
Whether at home or in the office, you can be assured that these cables won't let you down.

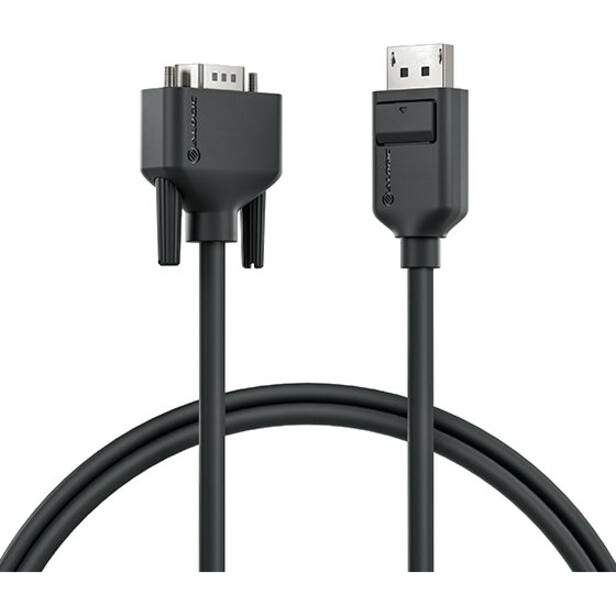

- Connects DisplayPort sources to VGA displays
- Supports VGA signals up to 1920 x1200 and Full HD 1080p at 60Hz
- Data rates to 4.95 Gbps
- Highly flexible cable with low bend radius can be used in tight spaces in equipment racks, AV furniture and behind wall mounted displays
- Robust PVC low profile connectors provide a comfortable grip and easy insertion while standing up to use in high traffic environments
- Warranty: Lifetime
| Brand | |
|---|---|
| Brand | Alogic |
| Screen / Display | |
|---|---|
| Supported Resolution | 1920 x 1200 |
| General Features | |
|---|---|
| Data Transfer Rate | 5 Gbit/s |
| Manufacturer | Alogic |
| Cables | |
|---|---|
| Cable Length | 6.56 ft |
| Cable Type | DisplayPort/VGA |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male |
| Connector on First End Details | 1 x DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | HD-15 VGA - Male |
| Connector Material | ABS |
| Jacket Material | Polyvinyl Chloride (PVC) |
| American Wire Gauge | 32 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
