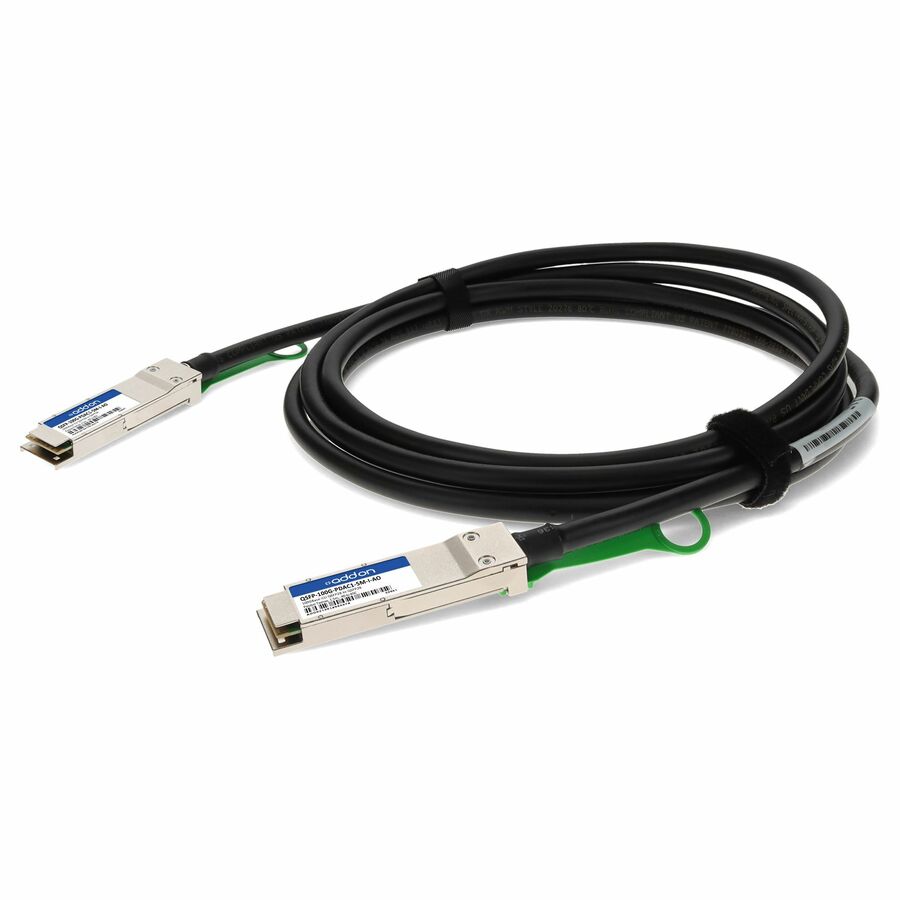

This is an MSA compliant 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 1.5m (4.9ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 conforms to the Small Form Factor SFF-8436
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support for multi-gigabit data rates: 16Gb/s - 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4x25.78Gb/s)
- IEEE 802.3bj 100GBase-CR4
- Copper link length up to 1.5m
- Power Supply: +3.3V
- Low crosstalk
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Industrial Temperature -40 to +85 Celsius
| Brand | |
|---|---|
| Brand | AddOn |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | AddOn |
| Cables | |
|---|---|
| Cable Length | 4.90 ft |
| Cable Type | QSFP28 |
| Connector Type on First End | QSFP28 Network - Male |
| Connector on First End Details | 1 x QSFP28 Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | QSFP28 Network - Male |
| Connector on Second End Details | 1 x QSFP28 Network |
| Connector Gender on Second End | Male |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Brand | AddOn |
| UPC/GTIN | 195285640796 |
| MPN | QSFP-100G-PDAC1-5M-I-AO |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
